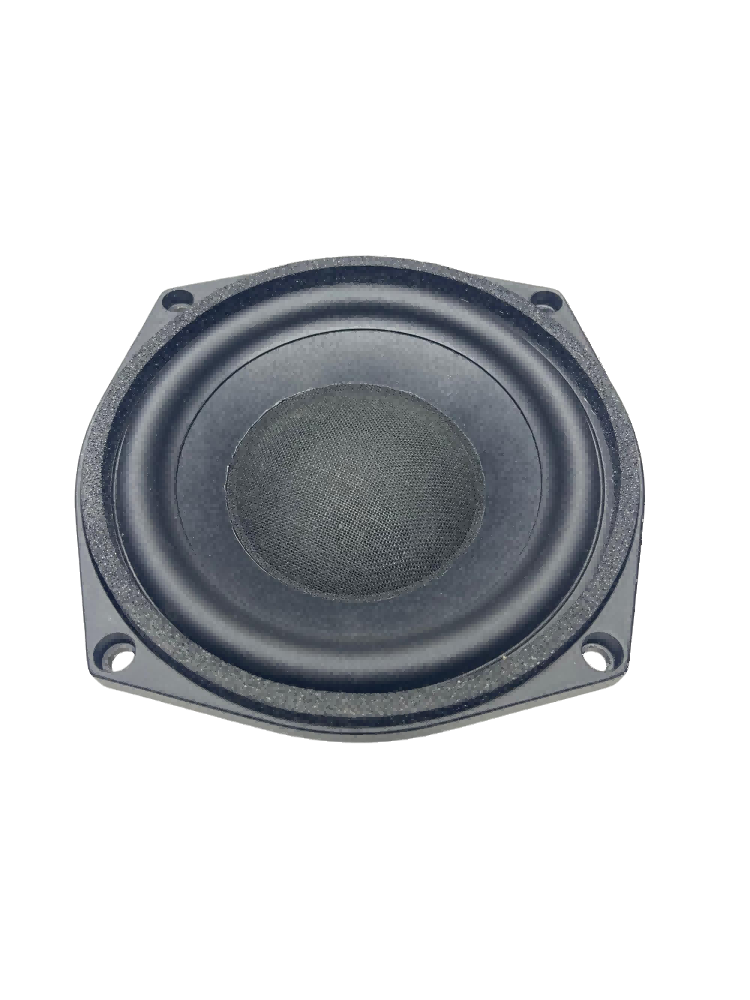

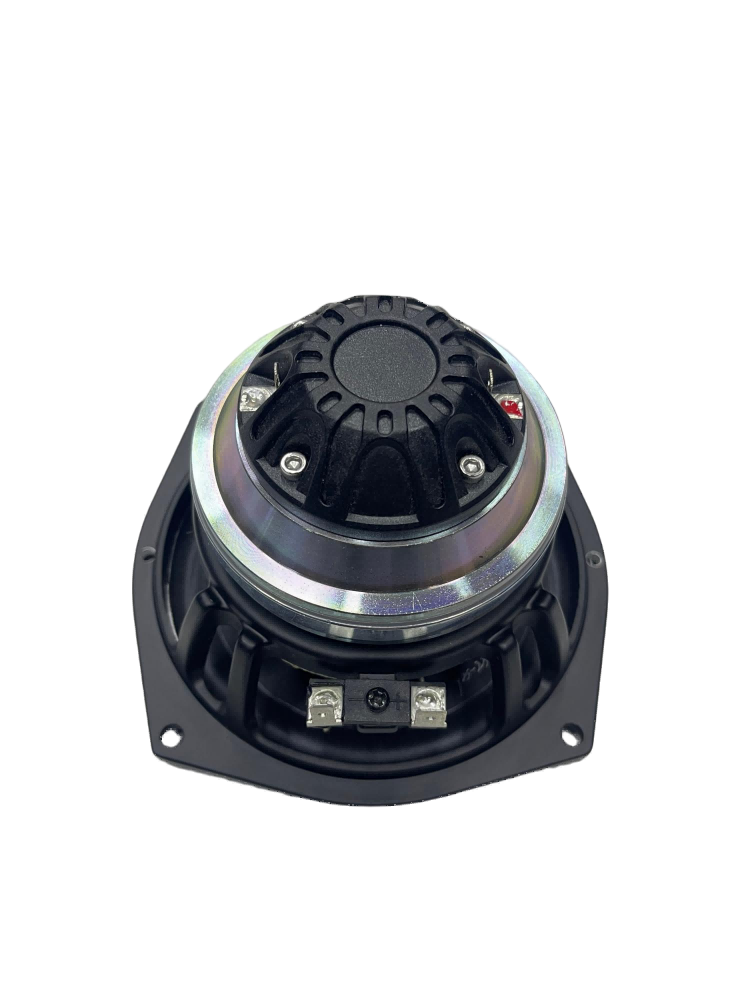

T05W44-8PN COAX DRIVER
KEY FEATURES:
- 88dB & 105dB 1W/1m sensitivity
- 150W & 25W AES power handling
- 75Hz-18kHz frequency response
- 44.2mm (1.7in) & 36mm (1.4in) voice coil
- Shared lightweight neodymium ring motor system
- Aluminum demodulating ring for lower distortion
- Heavy-duty cast aluminum chassis for increased rigidity
- Suitable for multiple sound sources systems and compact systems
Description
NOTES:
1、Two hours test according to AES 2-1984 Rev. 2003. Power calculated on rated minimum impedance.
2、Maximum power is defined as 3dB greater than Nominal power.
3、Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
4、12 dB/oct. or higher slope high-pass filter.
5、Xmax= [(winding depth – magnetic gap depth)/2] + (magnetic gap depth/3).
6、Thiele-Small parameters are measured after a preconditioning test.
7、Woofer power test made with continuous pink noise signal within the frequency range.Compression driver power test made with continuous pink noise signal within the range from the recommended crossover frequency to 20kHz.
General Specifications
| Part Number | T05W44-8PN |
| Nominal Diameter | 134.5mm (5in) |
| Nominal Impedance | LF : 8Ω HF : 8Ω |
| Minimum Impedance | LF : 5.8Ω at 400Hz HF : 7.1Ω at 4000Hz |
| AES Power Handling1 | LF : 150W HF : 25W |
| Maximum Power Handling2 | LF : 300W HF : 50W |
| （1W/1m）Sensitivity（1W/1m）3 | LF : 88dB HF : 105dB |
| Resonance Frequency | 75Hz |
| Recommended Crossover4 | 2kHz |
| Frequency Range | LF : 75Hz-2kHz HF : 1.5kHz-18kHz |
| Voice Coil Diameter | LF : 44.2mm HF : 36mm |
| Winding Material | LF : Copper Clad Aluminum HF : Flat Aluminum |
| Former Material | LF : Glass Fiber HF : Kapton |
| Winding Depth | WF : 14.2mm TW : 2.5mm |
| Magnetic Gap Depth | LF : 6mm HF : 3mm |
| Xmax5 | LF : 6.1mm |
| Flux Density | WF : 1.0T TW : 1.7T |
| Basket Material | Cast Aluminum |
| Magnet Material | LF&HF : Neodymium |
| Suspension Material | Fabric |
| Surround Material | Half-Roll Rubber |
| Cone Material | Curvilinear Paper |
| Diaphragm Material | Polymer |
| Phase Plug Material | Plastic |
| Cover Material | Plastic |
| Net Weight | 1.06kg |

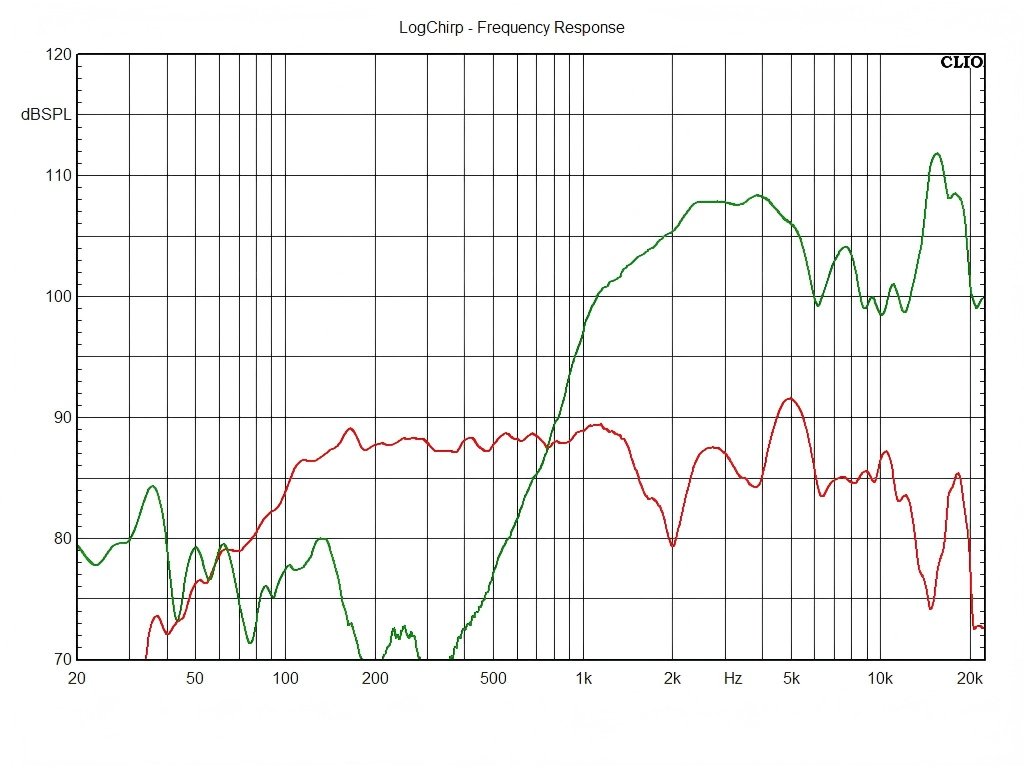

Frequency Response Curve

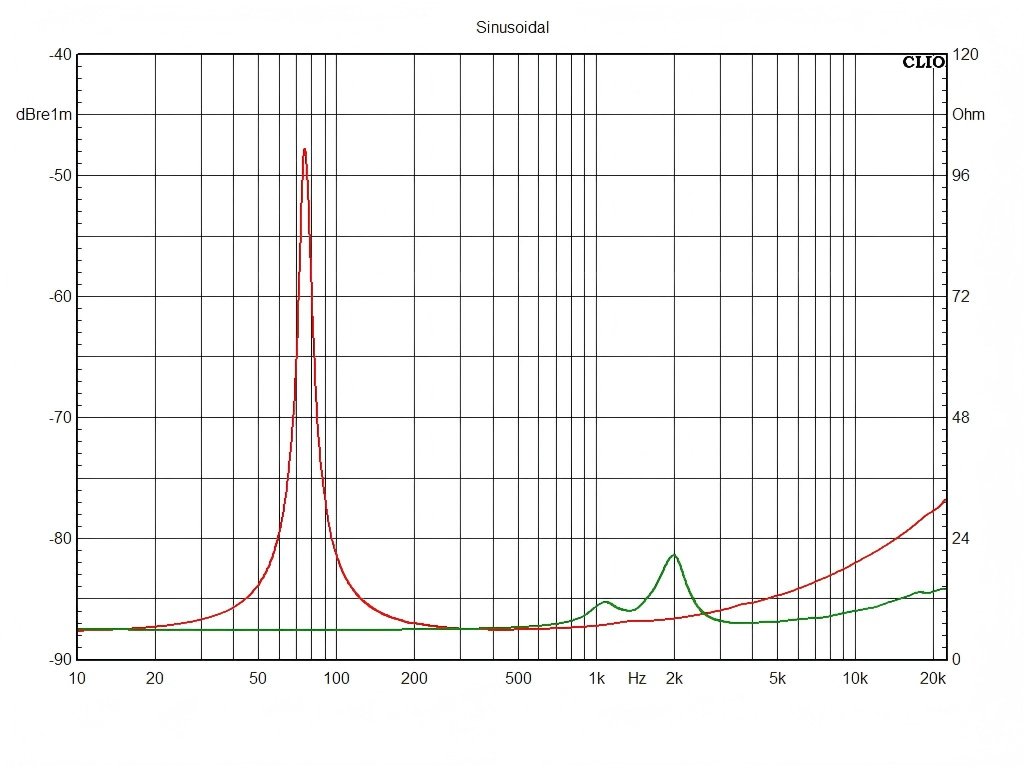

Impedance Curve
TS Parameters6
| Model Number | T05W44-8PN |
| Fs | 75Hz |
| Re | 5.0Ω |
| Le | 0.24mH |
| Mms | 12.6g |
| Mmd | 12.1g |
| Cms | 0.35mm/N |
| BL | 8.2Tm |
| Qms | 8.6 |
| Qes | 0.44 |
| Qts | 0.42 |
| Vas | 3.7L |
| Ref. Efficiency | 0.34% |
| Sd | 86.6cm2 |
| EBP | 178Hz |

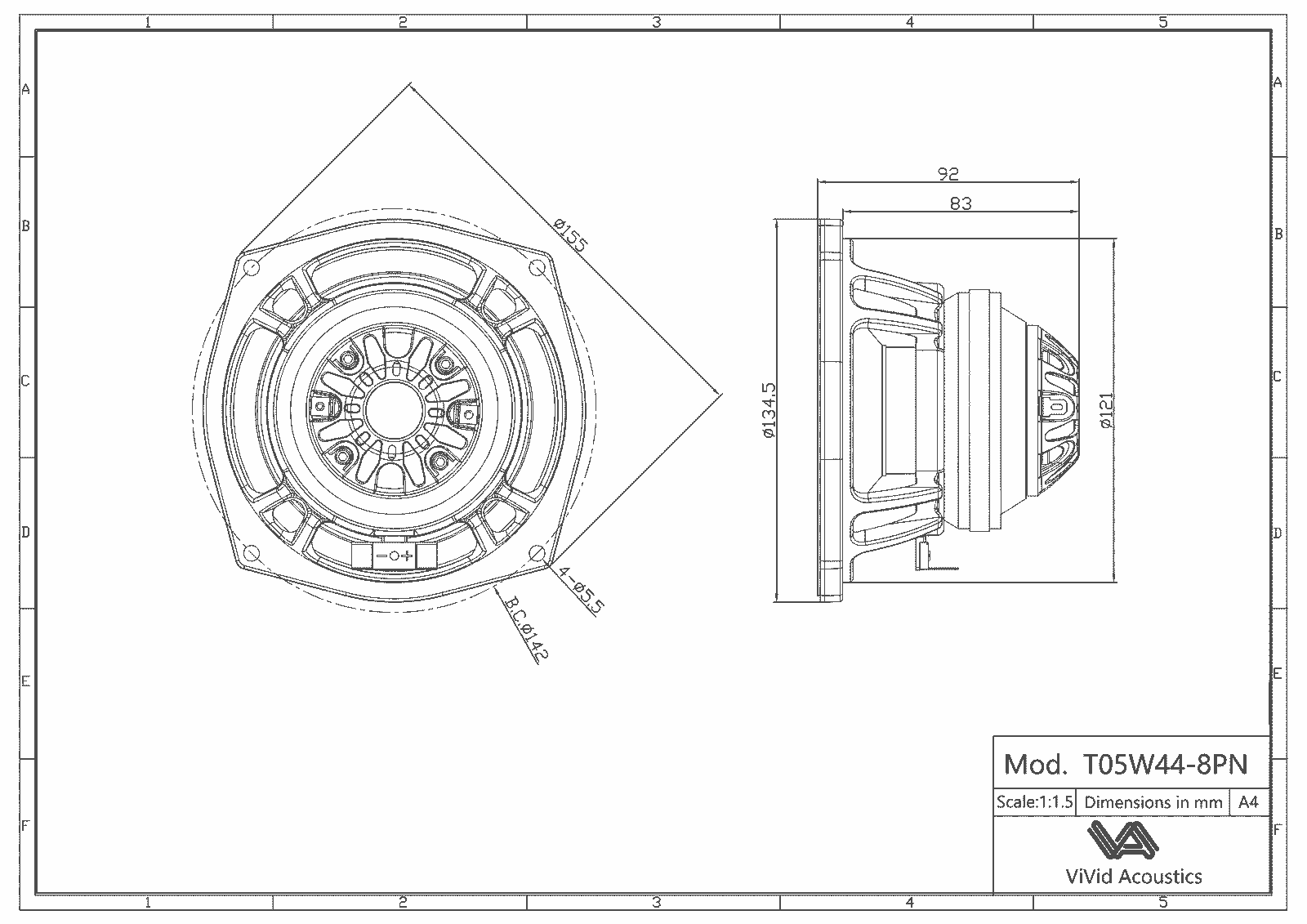

Mechanical Drawing
Additional information
| Series | COAX |
|---|---|
| Diameter | 5in |
| Nominal Impedance | LF : 8Ω HF : 8Ω |
| AES Power Handling | LF : 150W HF : 25W |
| Voice Coil Diameter | LF : 44.2mm HF : 36mm |
| Maximum Excursion | LF : 6.1mm |
| Magnet Material | LF&HF : Neodymium |
