TL44-16 COMPRESSION DRIVER
KEY FEATURES:
- 112dB 1W/1m sensitivity
- 4in×1in horn throat diameter
- 80W AES power handling
- 1.0kHz-20kHz frequency response
- 44.4mm (1.7in) flat copper clad aluminum voice coil
- Polymer diaphragm
- Neodymium ring magnetic structure
- Suitable for compact two way systems and multi-way systems
Description
NOTES:
1、Driver testing uses its own aluminum horn.
2、Two hours test according to AES 2-1984 Rev. 2003. Power calculated on rated minimum impedance.
3、Maximum power is defined as 3dB greater than Nominal power.
4、Applied RMS Voltage is set to 4 V for 16 ohms Nominal Impedance.
5、12 dB/oct. or higher slope high-pass filter.
6、Power test made with continuous pink noise signal within the range from the recommended crossover frequency to 20kHz.
General Specifications
| Part Number | TL44-16 |
| Throat Diameter | 101.6mm×25.4mm (4in×1in) |
| Nominal Impedance | 16Ω |
| Minimum Impedance | 16Ω at 9000Hz |
| AES Power Handling2 | 80W |
| Maximum Power Handling3 | 160W |
| Sensitivity (1W/1m)4 | 112dB |
| Recommended Crossover5 | 1.0kHz |
| Frequency Range | 1.0kHz-20kHz |
| Voice Coil Diameter | 44.4mm |
| Winding Material | Flat Copper Clad Aluminum |
| Former Material | Kapton |
| Flux Density | 2.2T |
| Diaphragm Material | Polymer |
| Phase Plug Material | Aluminum |
| Horn Material | Cast Aluminum |
| Magnet Material | Neodymium |
| Net Weight | 1.14kg |

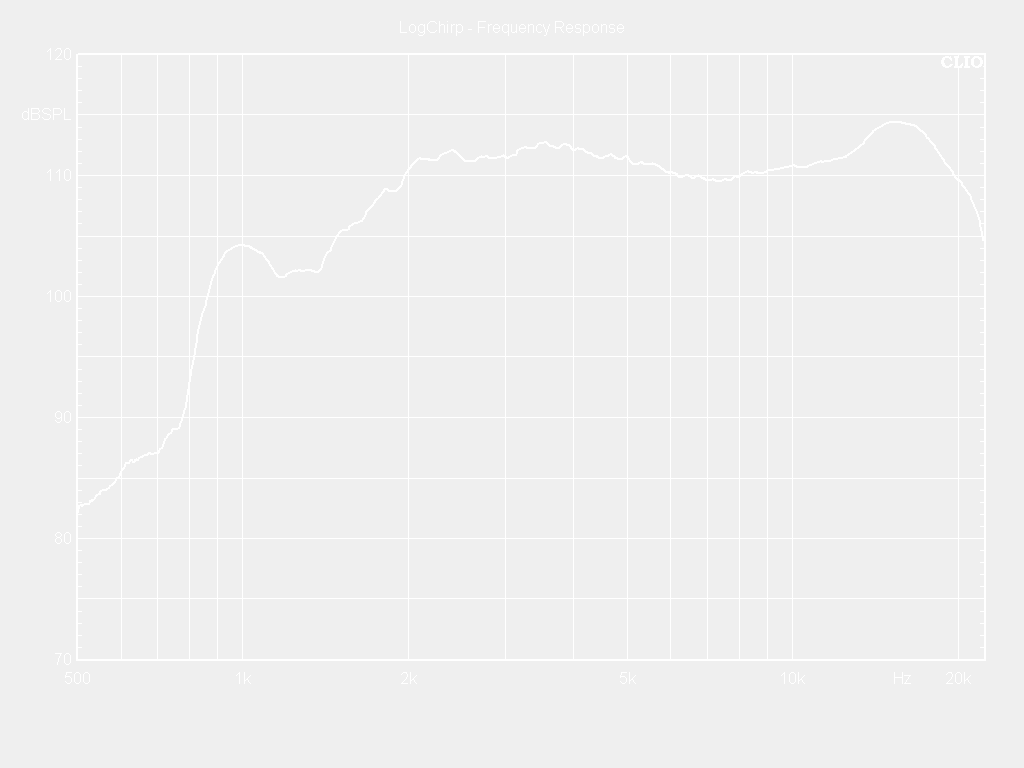

Frequency Response Curve
Impedance Curve

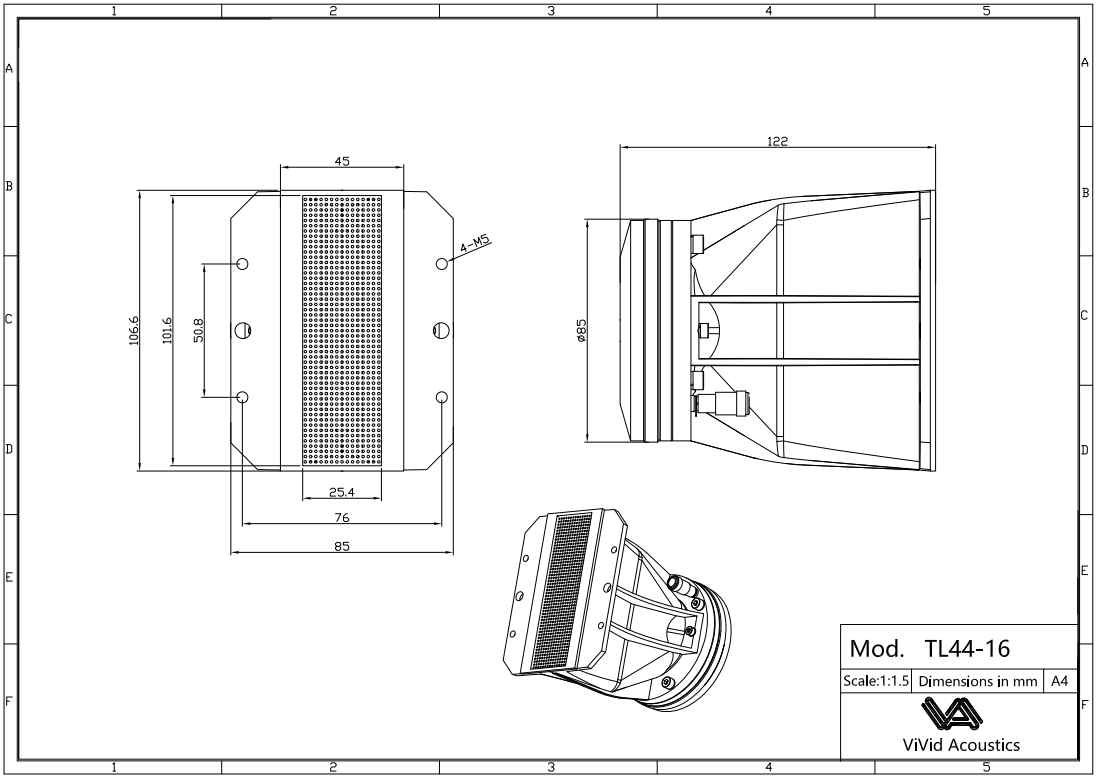

Mechanical Drawing
Additional information
| Diameter | 4in×1in |
|---|---|
| Nominal Impedance | 16Ω |
| Continuous Power Handling | 80W |
| Voice Coil Diameter | 44.4mm |
| Magnet Material | Neodymium |
