SW36T25-8PF COMPRESSION DRIVER
KEY FEATURES:
- SW36T25-8PF
- 107dB 1W/1m sensitivity
- 1in horn throat diameter
- 30W AES power handling
- 1.2kHz-20kHz frequency response
- 36mm (1.4in) flat aluminum voice coil
- Polymer diaphragm
- Suitable for compact two way systems and multi-way systems
Description
NOTES:
1、Driver mounted on 180×180×95H horn.
2、Two hours test according to AES 2-1984 Rev. 2003. Power calculated on rated minimum impedance.
3、Maximum power is defined as 3dB greater than Nominal power.
4、Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
5、12 dB/oct. or higher slope high-pass filter.
6、Power test made with continuous pink noise signal within the range from the recommended crossover frequency to 20kHz.
General Specifications
| Part Number | SW36T25-8PF |
| Throat Diameter | 25.4mm (1in) |
| Nominal Impedance | 8Ω |
| Minimum Impedance | 6.4Ω at 4200Hz |
| AES Power Handling2 | 30W |
| Maximum Power Handling3 | 60W |
| Sensitivity (1W/1m)4 | 107dB |
| Recommended Crossover5 | 2.2kHz |
| Frequency Range | 1.2kHz-20kHz |
| Voice Coil Diameter | 36mm |
| Winding Material | Flat Aluminum |
| Former Material | Kapton |
| Flux Density | 1.65T |
| Diaphragm Material | Polymer |
| Phase Plug Material | Plastic |
| Cover Material | Plastic |
| Magnet Material | Ferrite |
| Net Weight | 1.04kg |

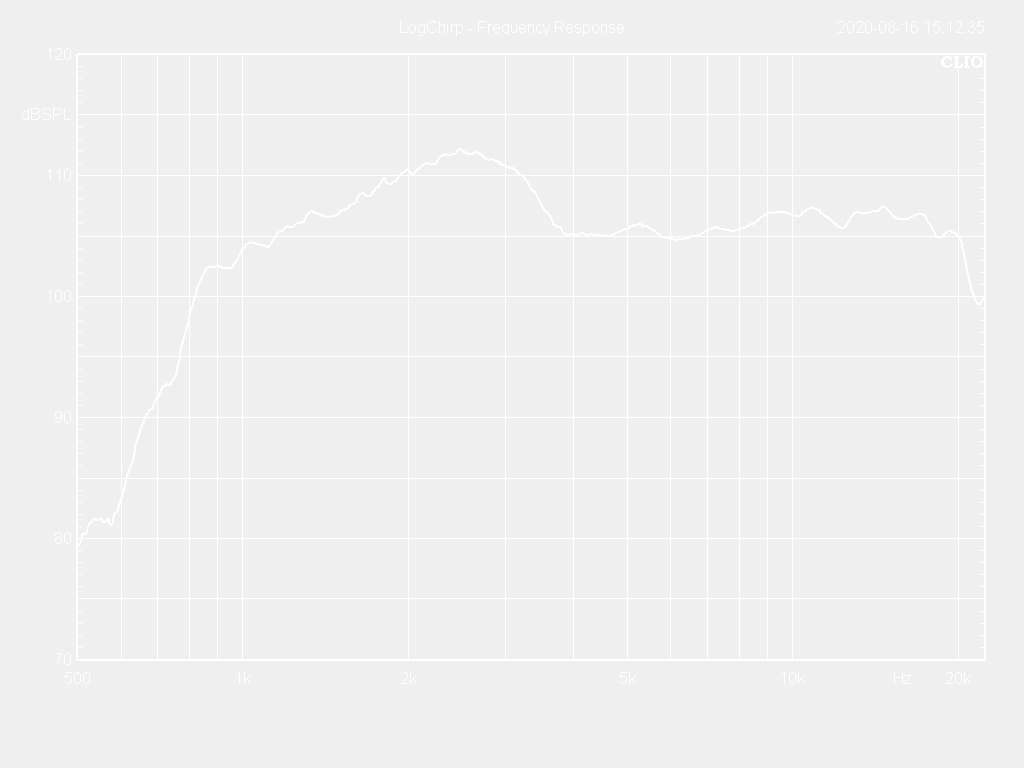

Frequency Response Curve

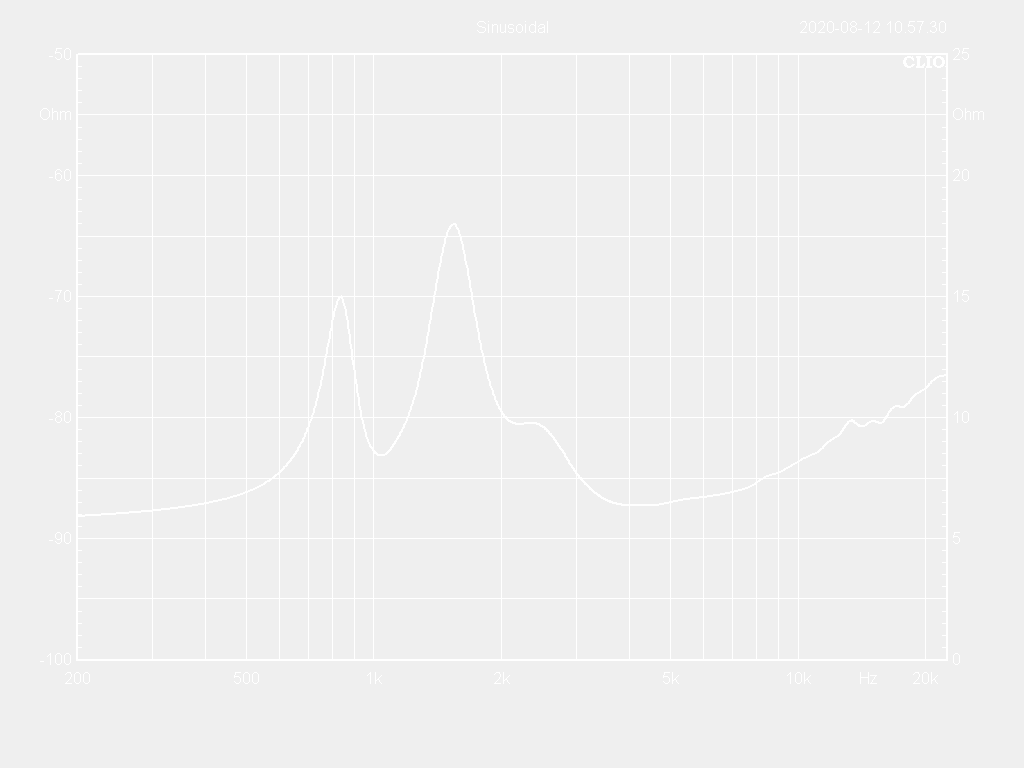

Impedance Curve

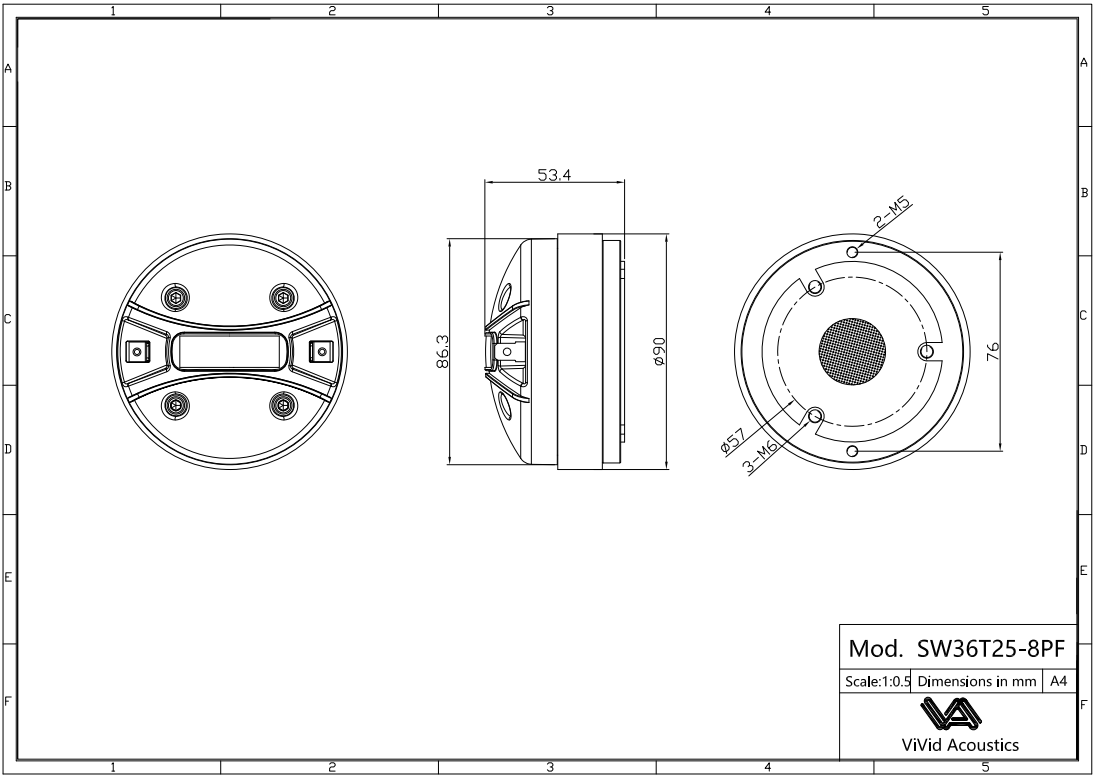

Mechanical Drawing
Additional information
| Diameter | 1in |
|---|---|
| Nominal Impedance | 8Ω |
| Continuous Power Handling | 30W |
| Voice Coil Diameter | 36mm |
| Magnet Material | Ferrite |
