25T25-8PF COMPRESSION DRIVER
KEY FEATURES:
- 107dB 1W/1m sensitivity
- 1in horn throat diameter
- 20W AES power handling
- 1.5kHz-20kHz frequency response
- 25.4mm (1.0in) aluminum voice coil
- Polymer diaphragm
- Suitable for compact two way systems and multi-way systems
Description
NOTES:
1、Driver mounted on 120×120×60H horn.
2、Two hours test according to AES 2-1984 Rev. 2003. Power calculated on rated minimum impedance.
3、Maximum power is defined as 3dB greater than Nominal power.
4、Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
5、12 dB/oct. or higher slope high-pass filter.
6、Power test made with continuous pink noise signal within the range from the recommended crossover
frequency to 20kHz.
General Specifications
| Part Number | 25T25-8PF |
| Throat Diameter | 25.4mm (1in) |
| Nominal Impedance | 8Ω |
| Minimum Impedance | 6.6Ω at 4800Hz |
| AES Power Handling2 | 20W |
| Maximum Power Handling3 | 40W |
| Sensitivity (1W/1m)4 | 107dB |
| Recommended Crossover5 | 2.5kHz |
| Frequency Range | 1.5kHz-20kHz |
| Voice Coil Diameter | 25.4mm |
| Winding Material | Aluminium |
| Former Material | Kapton |
| Flux Density | 1.55T |
| Diaphragm Material | Polymer |
| Phase Plug Material | Plastic |
| Cover Material | Plastic |
| Magnet Material | Ferrite |
| Net Weight | 0.79kg |

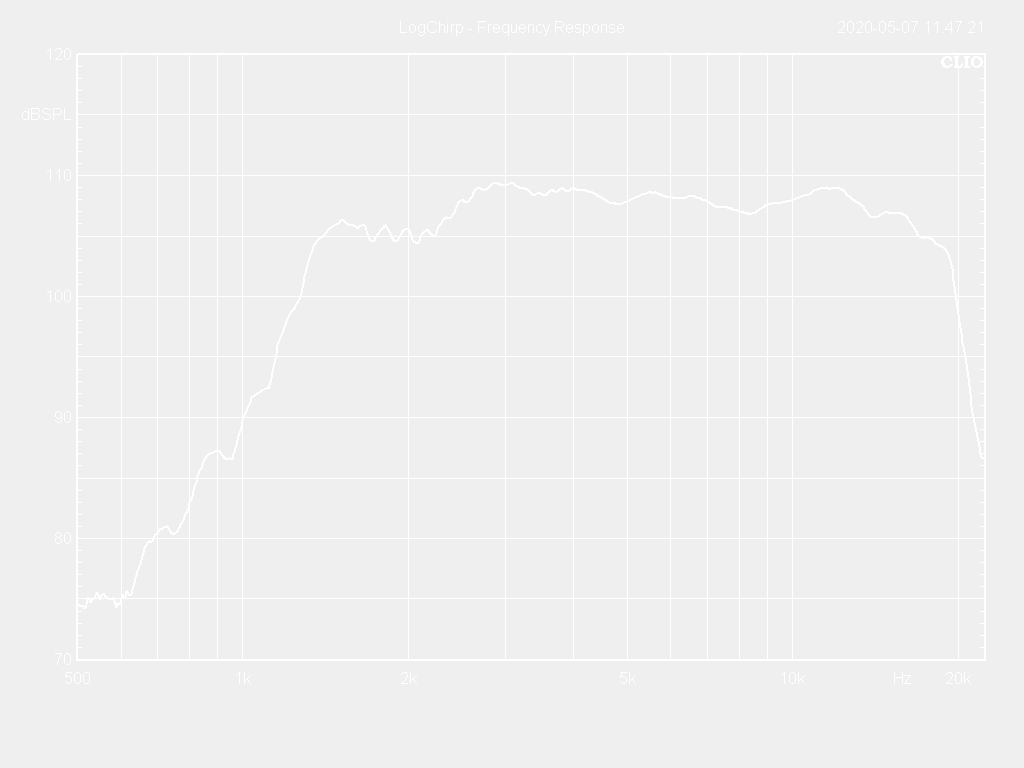

Frequency Response Curve

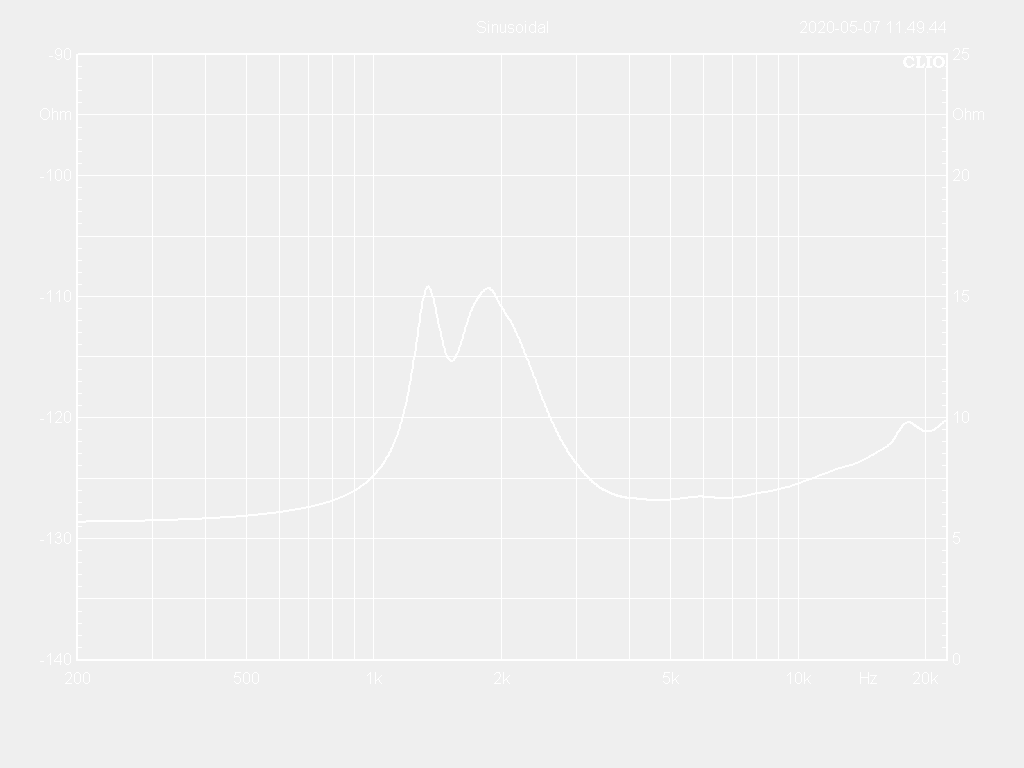

Impedance Curve
Mechanical Drawing
Additional information
| Diameter | 1in |
|---|---|
| Nominal Impedance | 8Ω |
| Continuous Power Handling | 20W |
| Voice Coil Diameter | 25.4mm |
| Magnet Material | Ferrite |
