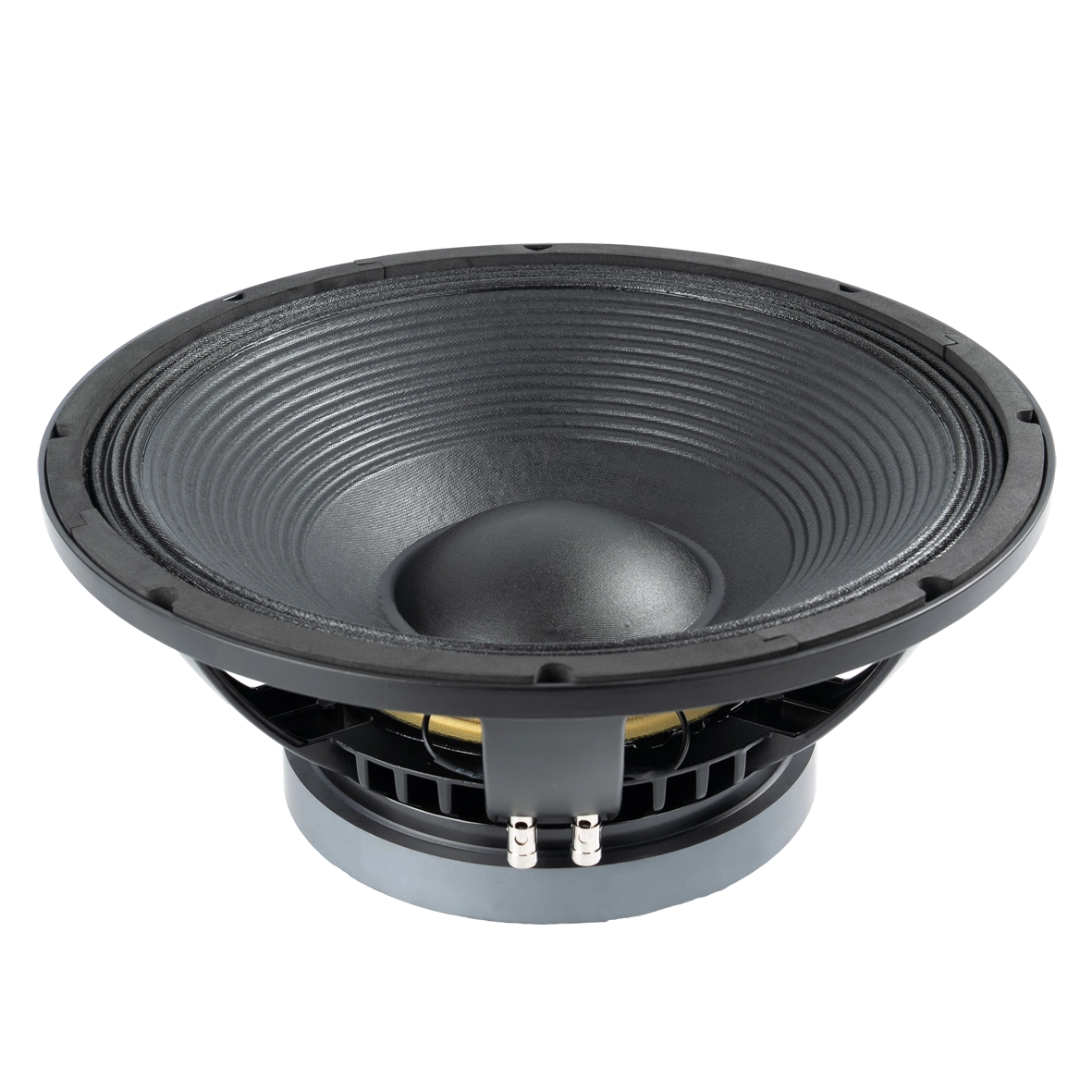

15SW100-8BP BASS/MID RANGE DRIVER
KEY FEATURES:
- 99dB 1W/1m sensitivity
- 500W AES power handling
- 48Hz-2.5kHz frequency response
- 75.55mm (3.0in) copper voice coil
- Aluminum demodulating ring for lower distortion
- Ventilated voice coil gap for reduced power compression
- Heavy-duty cast aluminum chassis for increased rigidity
- Suitable for compact two way systems
Description
NOTES:
1、Two hours test according to AES 2-1984 Rev. 2003. Power calculated on rated minimum impedance.
2、Maximum power is defined as 3dB greater than Nominal power.
3、Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
4、Xmax= [(winding depth – magnetic gap depth)/2] + (magnetic gap depth/3).
5、Thiele-Small parameters are measured after a preconditioning test.
6、Power test made with continuous pink noise signal within the frequency range.
General Specifications
| Part Number | 15SW100-8BP |
| Nominal Diameter | 395mm (15in) |
| Nominal Impedance | 8Ω |
| Minimum Impedance | 6.6Ω |
| AES Power Handling1 | 1000W |
| Maximum Power Handling2 | 2000W |
| Sensitivity (1W/1m)3 | 96dB |
| Resonance Frequency | 40Hz |
| Frequency Range | 40Hz-1.5kHz |
| Voice Coil Diameter | 99.3mm |
| Winding Material | Copper |
| Former Material | Glass Fiber |
| Winding Depth | 28.6mm |
| Magnetic Gap Depth | 12mm |
| Xmax4 | 12.3mm |
| Flux Density | 1.05T |
| Basket Material | Cast Aluminum |
| Magnet Material | Ferrite |
| Suspension Material | Double Fabric |
| Surround Material | W-Roll Cloth-sealed |
| Cone Material | Curvilinear Paper |
| Net Weight | 12kg |
Frequency Response Curve
Impedance Curve
TS Parameters5
| Model Number | 15SW100-8BP |
| Fs | 40Hz |
| Re | 5.3Ω |
| Le | 0.96mH |
| Mms | 180g |
| Mmd | 165g |
| Cms | 0.09mm/N |
| BL | 24.5Tm |
| Qms | 9.4 |
| Qes | 0.40 |
| Qts | 0.38 |
| Vas | 94L |
| Ref. Efficiency | 1.5% |
| Sd | 881cm2 |
| EBP | 100Hz |
Mechanical Drawing
Additional information
| Series | SW SERIES |
|---|---|
| Diameter | 15in |
| Nominal Impedance | 8Ω |
| Continuous Power Handling | 1000W |
| Voice Coil Diameter | 99.3mm |
| Maximum Excursion | 12.3mm |
| Magnet Material | Ferrite |
