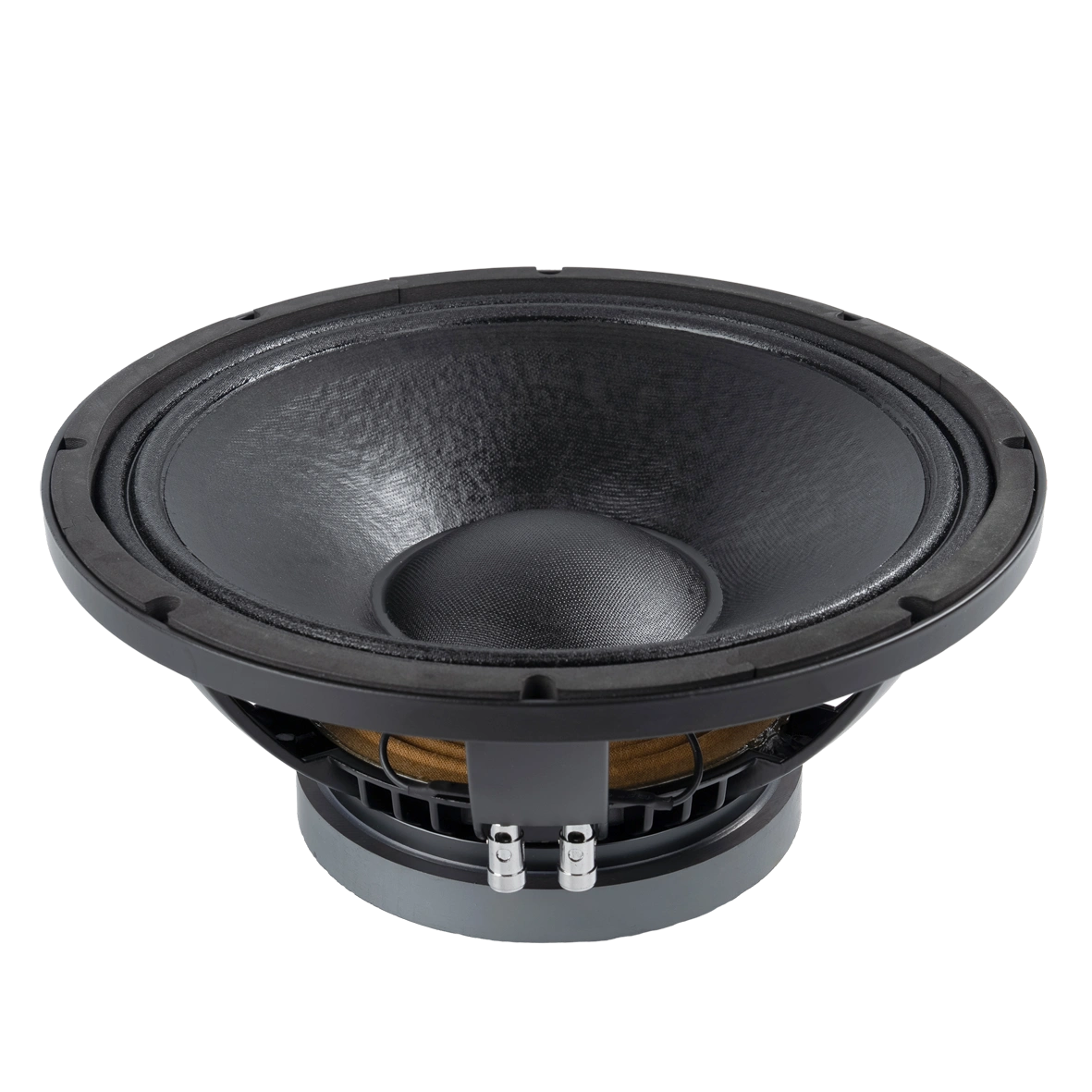

12W75-8XH BASS/MID RANGE DRIVER
KEY FEATURES:
- 98dB 1W/1m sensitivity
- 350W AES power handling
- 50Hz-3kHz frequency response
- 75.55mm (3.0in) aluminum voice coil
- Aluminum demodulating ring for lower distortion
- Ventilated voice coil gap for reduced power compression
- Heavy-duty cast aluminum chassis for increased rigidity
- Suitable for compact two way systems
Description
NOTES:
1、Two hours test according to AES 2-1984 Rev. 2003. Power calculated on rated minimum impedance.
2、Maximum power is defined as 3dB greater than Nominal power.
3、Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
4、Xmax= [(winding depth – magnetic gap depth)/2] + (magnetic gap depth/3).
5、Thiele-Small parameters are measured after a preconditioning test.
6、Power test made with continuous pink noise signal within the frequency range.
General Specifications
| Part Number | 12W75-8XH |
| Nominal Diameter | 316mm (12in) |
| Nominal Impedance | 8Ω |
| Minimum Impedance | 5.4Ω |
| AES Power Handling1 | 350W |
| Maximum Power Handling2 | 700W |
| Sensitivity（1W/1m）3 | 98dB |
| Resonance Frequency | 50Hz |
| Frequency Range | 50Hz-3kHz |
| Voice Coil Diameter | 75.55mm |
| Winding Material | Aluminum |
| Former Material | Glass Fiber |
| Winding Depth | 16.4mm |
| Magnetic Gap Depth | 10mm |
| Xmax4 | 6.5mm |
| Flux Density | 1.15T |
| Basket Material | Cast Aluminum |
| Magnet Material | Ferrite |
| Suspension Material | Fabric |
| Surround Material | M-Roll Cloth-sealed |
| Cone Material | Curvilinear Paper |
| Net Weight | 5.8kg |

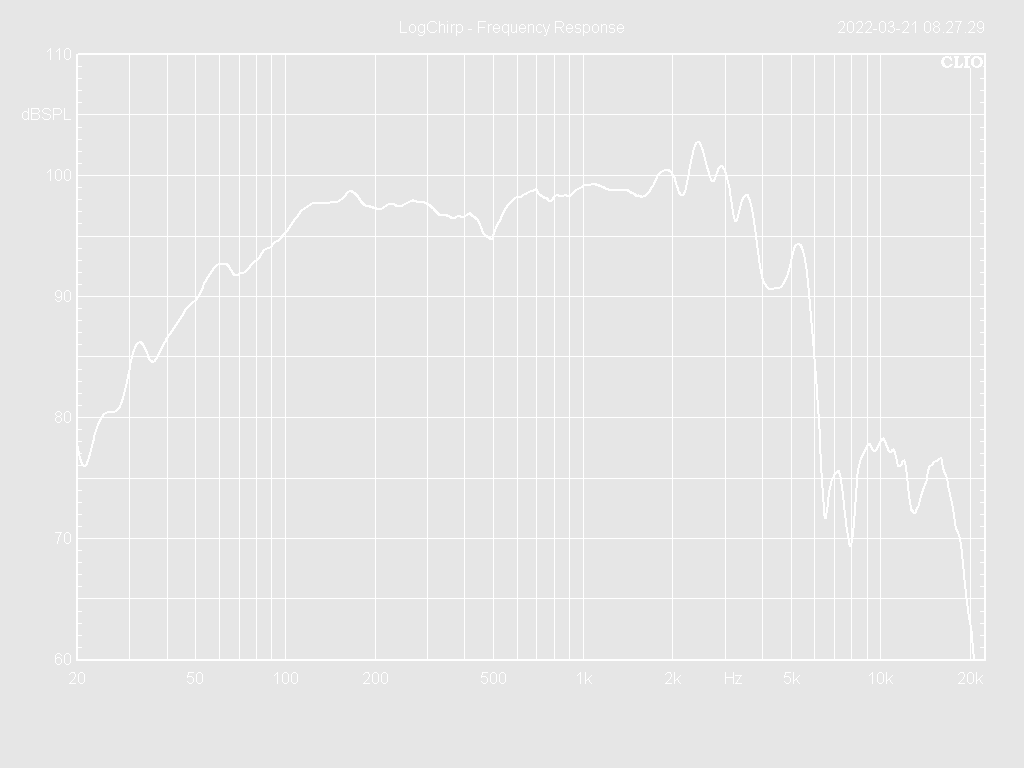

Frequency Response Curve

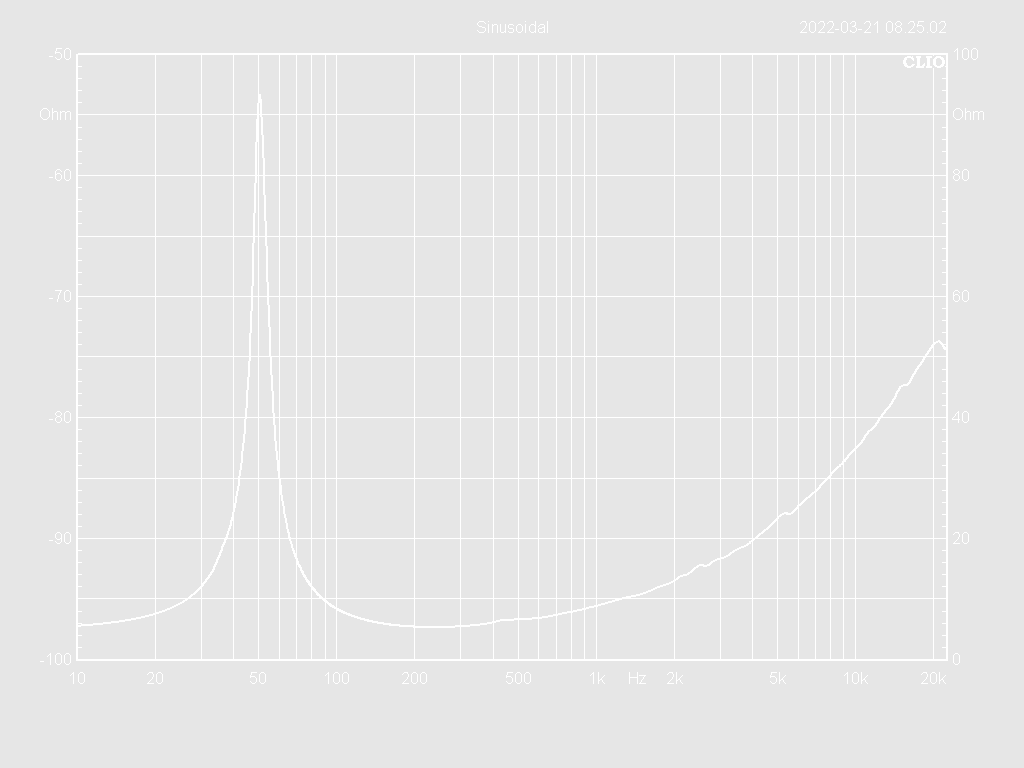

Impedance Curve
TS Parameters5
| Model Number | 12W75-8XH |
| Fs | 48Hz |
| Re | 5.0Ω |
| Le | 0.47mH |
| Mms | 67g |
| Mmd | 60g |
| Cms | 0.16mm/N |
| BL | 15.5Tm |
| Qms | 6.5 |
| Qes | 0.42 |
| Qts | 0.39 |
| Vas | 65L |
| Ref. Efficiency | 1.6% |
| Sd | 531cm2 |
| EBP | 114Hz |

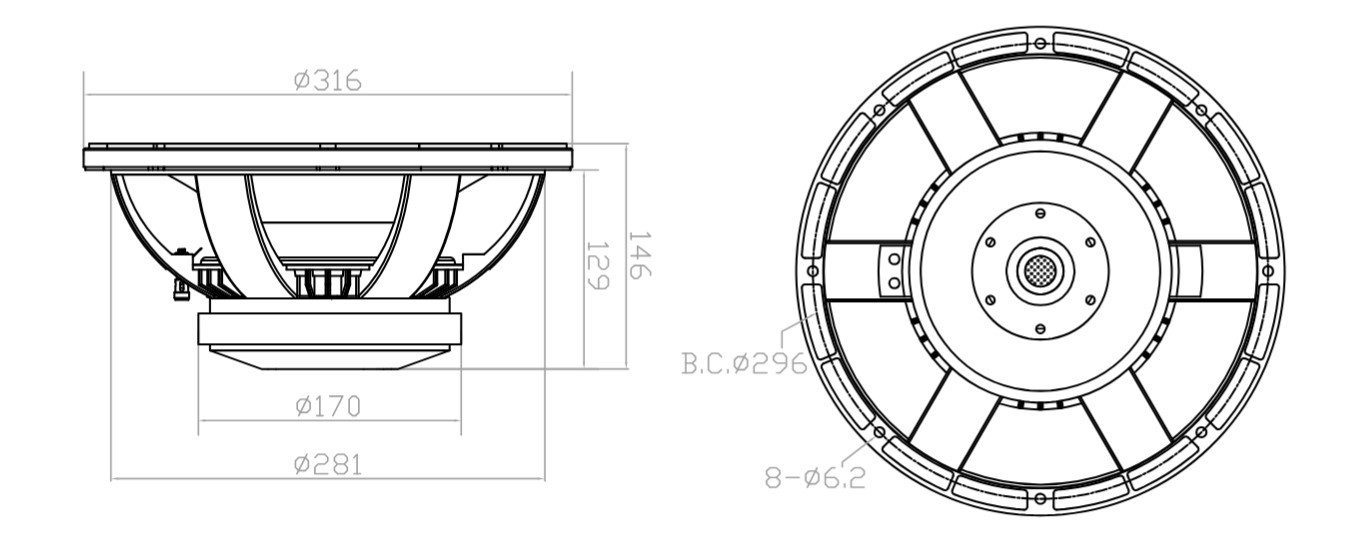

Mechanical Drawing
Additional information
| Series | XH SERIES |
|---|---|
| Diameter | 12in |
| Nominal Impedance | 8Ω |
| Continuous Power Handling | 350W |
| Voice Coil Diameter | 75.55mm |
| Maximum Excursion | 6.5mm |
| Magnet Material | Ferrite |
