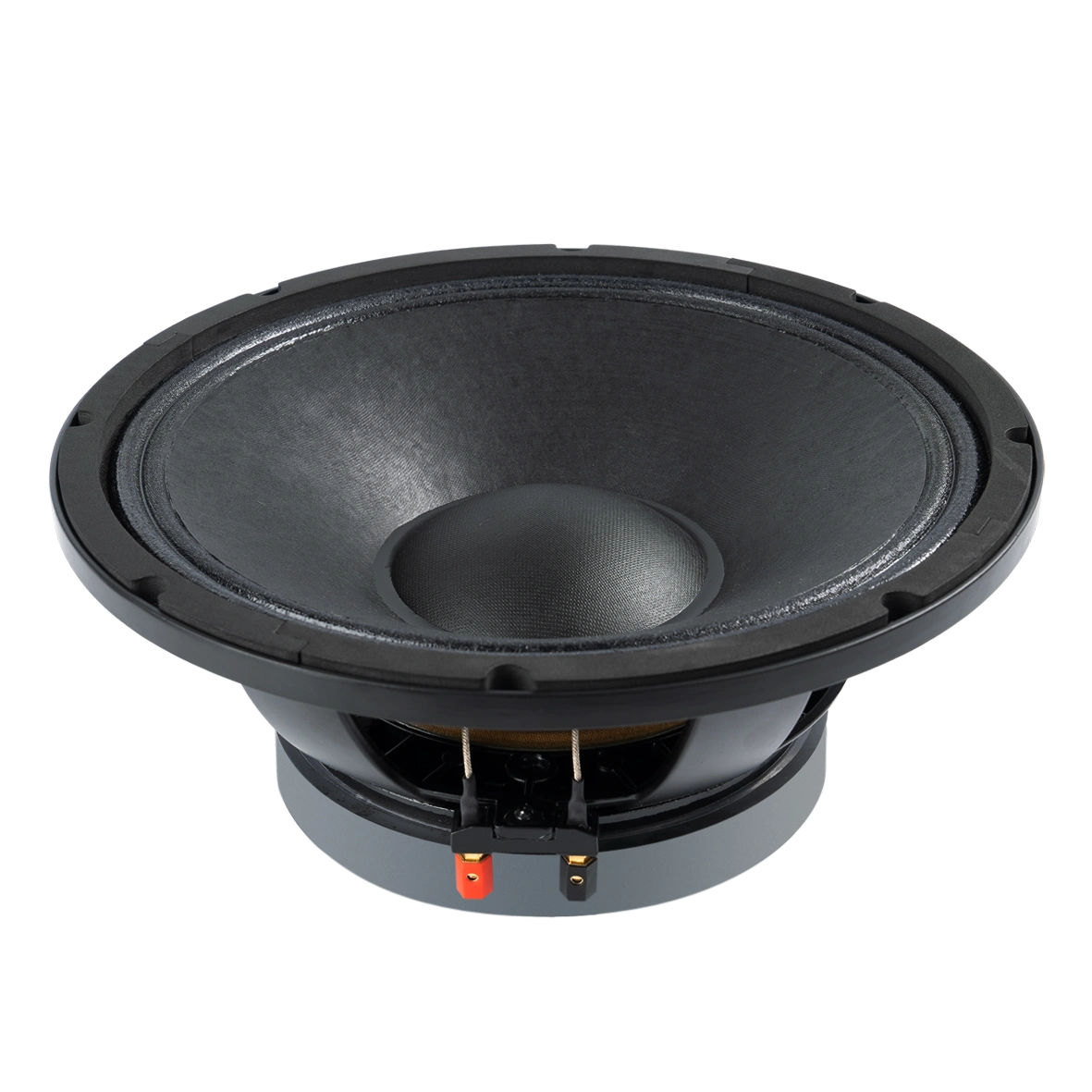

12W75-16FX BASS/MID RANGE DRIVER
KEY FEATURES:
- 98dB 1W/1m sensitivity
- 500W AES power handling
- 52Hz-2.5kHz frequency response
- 75.55mm (3.0in) copper voice coil
- Aluminum demodulating ring for lower distortion
- Ventilated voice coil gap for reduced power compression
- Heavy-duty cast aluminum chassis for increased rigidity
- Suitable for line arrays and compact two way systems
Description
NOTES:
1、Two hours test according to AES 2-1984 Rev. 2003. Power calculated on rated minimum impedance.
2、Maximum power is defined as 3dB greater than Nominal power.
3、Applied RMS Voltage is set to 4 V for 16 ohms Nominal Impedance.
4、Xmax= [(winding depth – magnetic gap depth)/2] + (magnetic gap depth/3).
5、Thiele-Small parameters are measured after a preconditioning test.
6、Power test made with continuous pink noise signal within the frequency range.
General Specifications
| Part Number | 12W75-16FX |
| Nominal Diameter | 315mm (12in) |
| Nominal Impedance | 16Ω |
| Minimum Impedance | 14.6Ω |
| AES Power Handling1 | 500W |
| Maximum Power Handling2 | 1000W |
| Sensitivity (1W/1m)3 | 98dB |
| Resonance Frequency | 52Hz |
| Frequency Range | 52Hz-2.5kHz |
| Voice Coil Diameter | 75.55mm |
| Winding Material | Copper |
| Former Material | Glass Fiber |
| Winding Depth | 19.2mm |
| Magnetic Gap Depth | 10mm |
| Xmax4 | 7.9mm |
| Flux Density | 1.25T |
| Basket Material | Cast Aluminum |
| Magnet Material | Ferrite |
| Suspension Material | Fabric |
| Surround Material | M-Roll Cloth-sealed |
| Cone Material | Curvilinear Paper |
| Net Weight | 7.6kg |

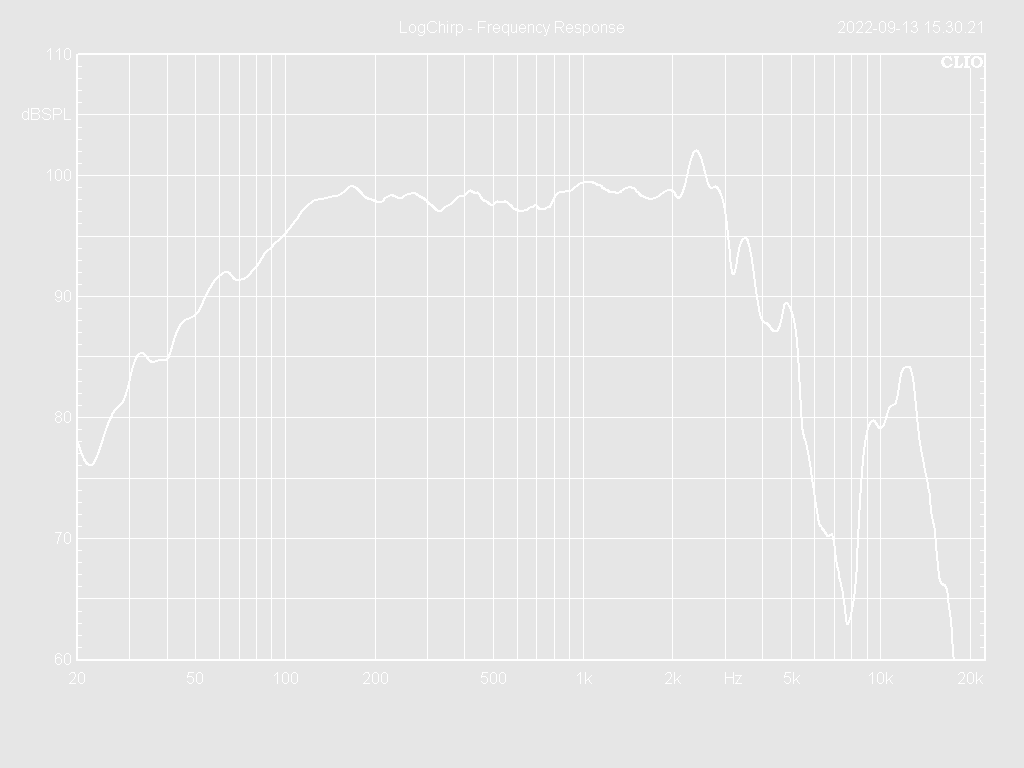

Frequency Response Curve
Impedance Curve
TS Parameters5
| Model Number | 12W75-16FX |
| Fs | 53Hz |
| Re | 13.8Ω |
| Le | 1.2mH |
| Mms | 68g |
| Mmd | 61g |
| Cms | 0.12mm/N |
| BL | 27.2Tm |
| Qms | 8.3 |
| Qes | 0.44 |
| Qts | 0.42 |
| Vas | 47L |
| Ref. Efficiency | 1.7% |
| Sd | 531cm2 |
| EBP | 125Hz |
Mechanical Drawing
Additional information
| Series | FX SERIES |
|---|---|
| Diameter | 12in |
| Nominal Impedance | 16Ω |
| Continuous Power Handling | 500W |
| Voice Coil Diameter | 75.55mm |
| Maximum Excursion | 7.9mm |
| Magnet Material | Ferrite |
