10W75-8NS BASS/MID RANGE DRIVER
KEY FEATURES:
- 97dB 1W/1m sensitivity
- 350W AES power handling
- 60Hz-3.5kHz frequency response
- 75.55mm (3.0in) copper clad aluminum voice coil
- Lightweight neodymium inside slug motor system
- Ventilated voice coil gap for reduced power compression
- Heavy-duty cast aluminum chassis for increased rigidity
- Suitable for line arrays and compact two way systems
Description
NOTES:
1、Two hours test according to AES 2-1984 Rev. 2003. Power calculated on rated minimum impedance.
2、Maximum power is defined as 3dB greater than Nominal power.
3、Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
4、Xmax= [(winding depth – magnetic gap depth)/2] + (magnetic gap depth/3).
5、Thiele-Small parameters are measured after a preconditioning test.
6、Power test made with continuous pink noise signal within the frequency range.
General Specifications
| Part Number | 10W75-8NS |
| Nominal Diameter | 261mm (10in) |
| Nominal Impedance | 8Ω |
| Minimum Impedance | 7.3Ω |
| AES Power Handling1 | 350W |
| Maximum Power Handling2 | 700W |
| Sensitivity (1W/1m)3 | 97dB |
| Resonance Frequency | 60Hz |
| Frequency Range | 60Hz-3.5kHz |
| Voice Coil Diameter | 75.55mm |
| Winding Material | Copper Clad Aluminum |
| Former Material | Glass Fiber |
| Winding Depth | 18.5mm |
| Magnetic Gap Depth | 10mm |
| Xmax4 | 7.6mm |
| Flux Density | 1.1T |
| Basket Material | Cast Aluminum |
| Magnet Material | Neodymium Inside Slug |
| Suspension Material | Fabric |
| Surround Material | M-Roll Cloth-sealed |
| Cone Material | Curvilinear Paper |
| Net Weight | 3.7kg |
Frequency Response Curve

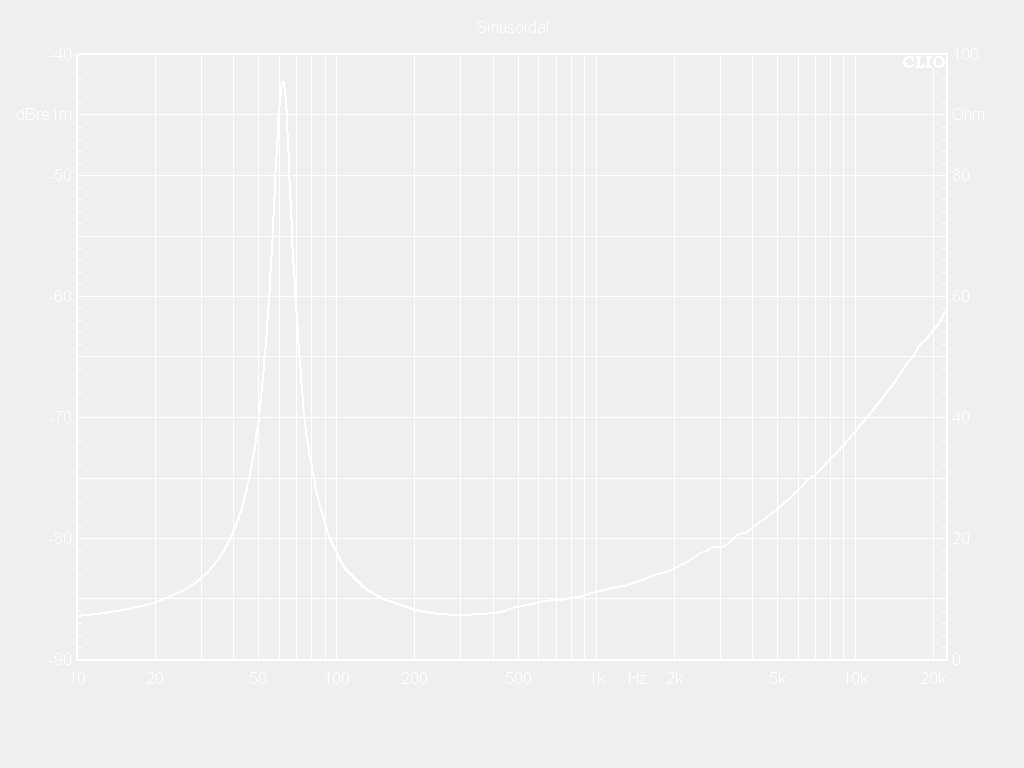

Impedance Curve
TS Parameters5
| Model Number | 10W75-8NS |
| Fs | 62Hz |
| Re | 5.1Ω |
| Le | 0.49mH |
| Mms | 44g |
| Mmd | 40g |
| Cms | 0.15mm/N |
| BL | 16.9Tm |
| Qms | 5.5 |
| Qes | 0.31 |
| Qts | 0.29 |
| Vas | 25L |
| Ref. Efficiency | 1.8% |
| Sd | 346cm2 |
| EBP | 200Hz |

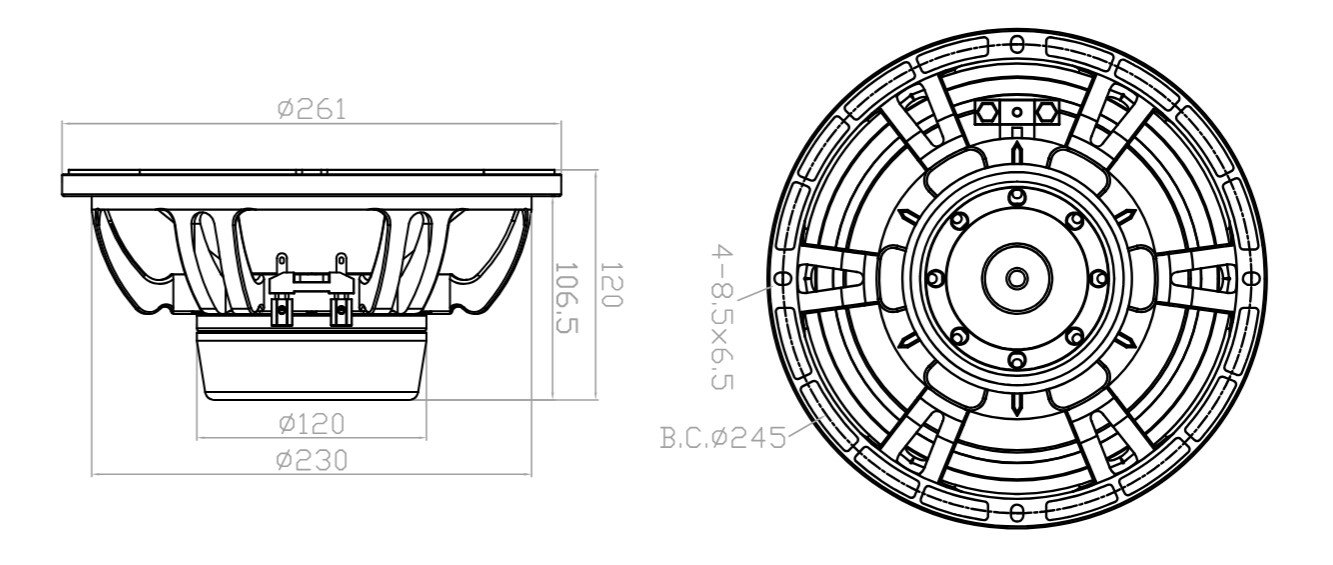

Mechanical Drawing
Additional information
| Series | NX SERIES |
|---|---|
| Diameter | 10in |
| Nominal Impedance | 8Ω |
| Continuous Power Handling | 350W |
| Voice Coil Diameter | 75.55mm |
| Maximum Excursion | 7.6mm |
| Magnet Material |
