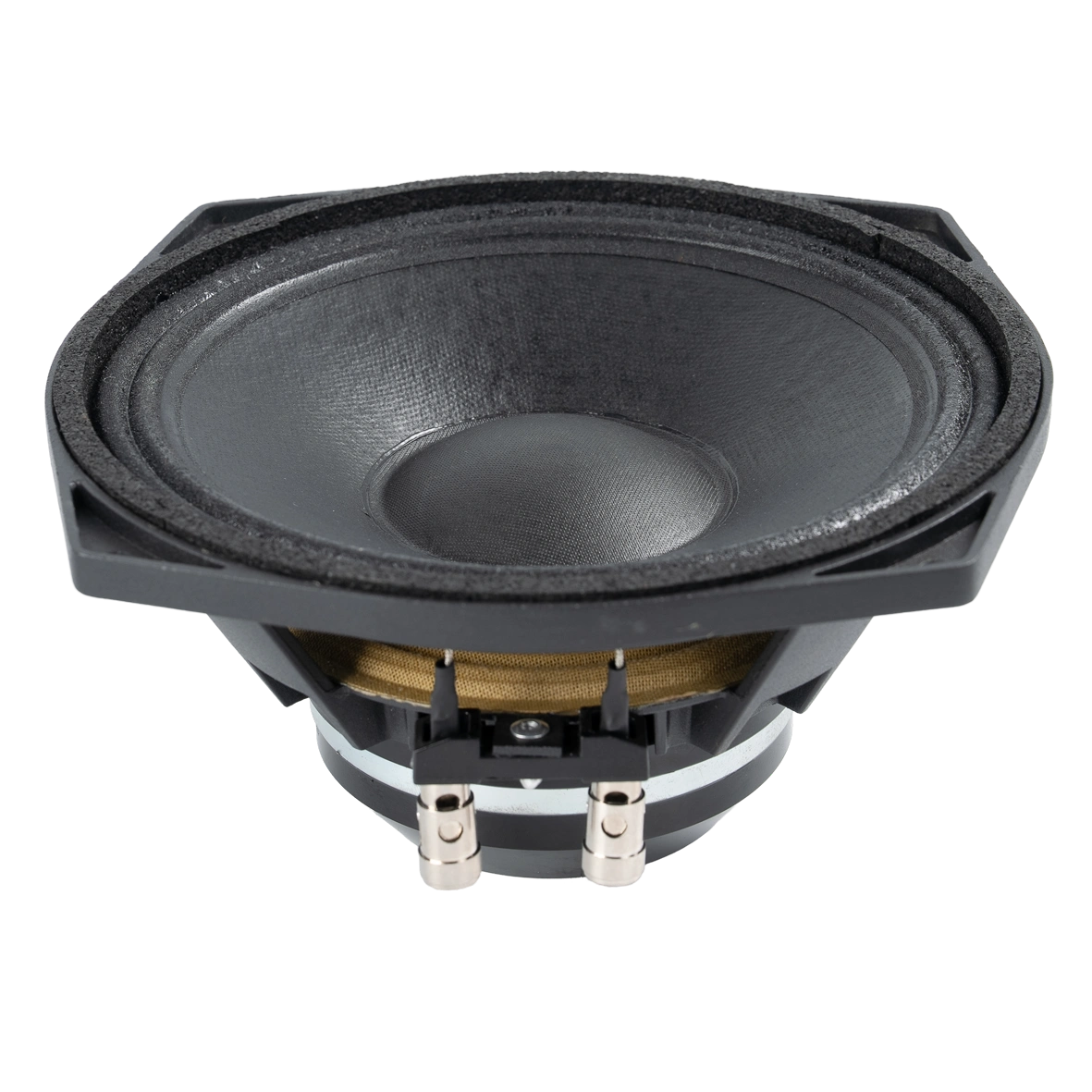

Description
NOTES:
1、Two hours test according to AES 2-1984 Rev. 2003. Power calculated on rated minimum impedance.
2、Maximum power is defined as 3dB greater than Nominal power.
3、Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
4、Xmax= [(winding depth – magnetic gap depth)/2] + (magnetic gap depth/3).
5、Thiele-Small parameters are measured after a preconditioning test.
6、Power test made with continuous pink noise signal within the frequency range.
General Specifications
| Part Number | 08W50-8NXH |
| Nominal Diameter | 199.5mm (8in) |
| Nominal Impedance | 8Ω |
| Minimum Impedance | 6.5Ω |
| AES Power Handling1 | 250W |
| Maximum Power Handling2 | 500W |
| Sensitivity (1W/1m)3 | 97dB |
| Resonance Frequency | 78Hz |
| Frequency Range | 78Hz-5kHz |
| Voice Coil Diameter | 50.6mm |
| Winding Material | Copper Clad Aluminum |
| Former Material | Glass Fiber |
| Winding Depth | 15.4mm |
| Magnetic Gap Depth | 8mm |
| Xmax4 | 6.4mm |
| Flux Density | 1.4T |
| Basket Material | Cast Aluminum |
| Magnet Material | Neodymium Ring |
| Suspension Material | Fabric |
| Surround Material | M-Roll Cloth-sealed |
| Cone Material | Curvilinear Paper |
| Net Weight | 2.2kg |

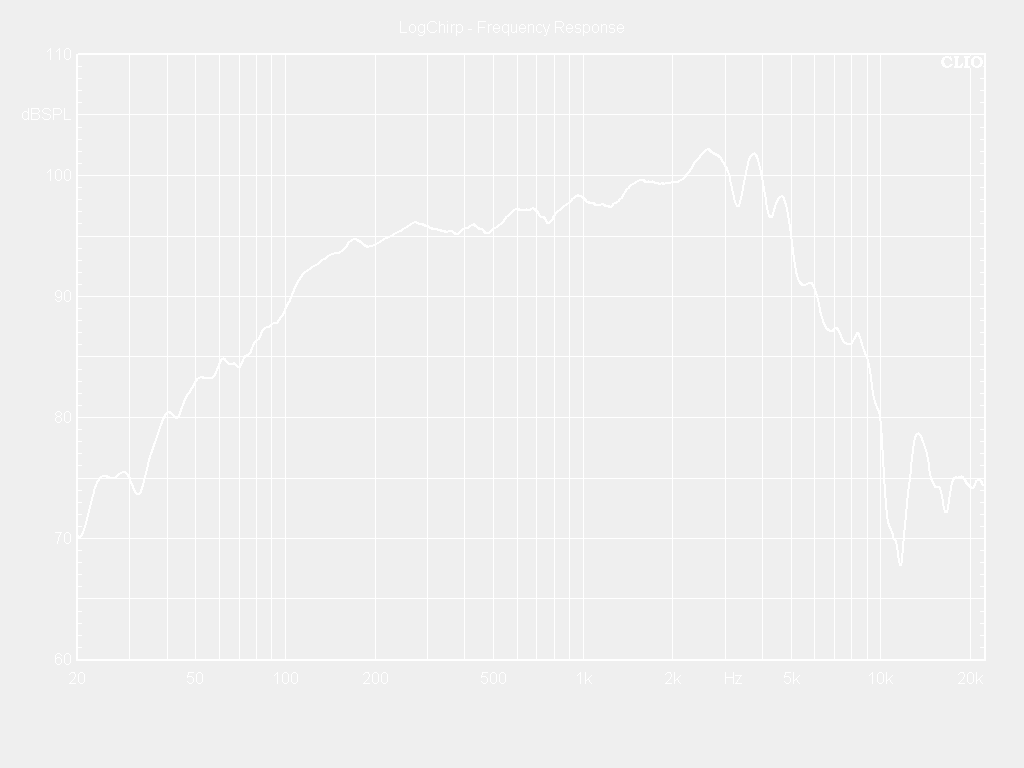

Frequency Response Curve

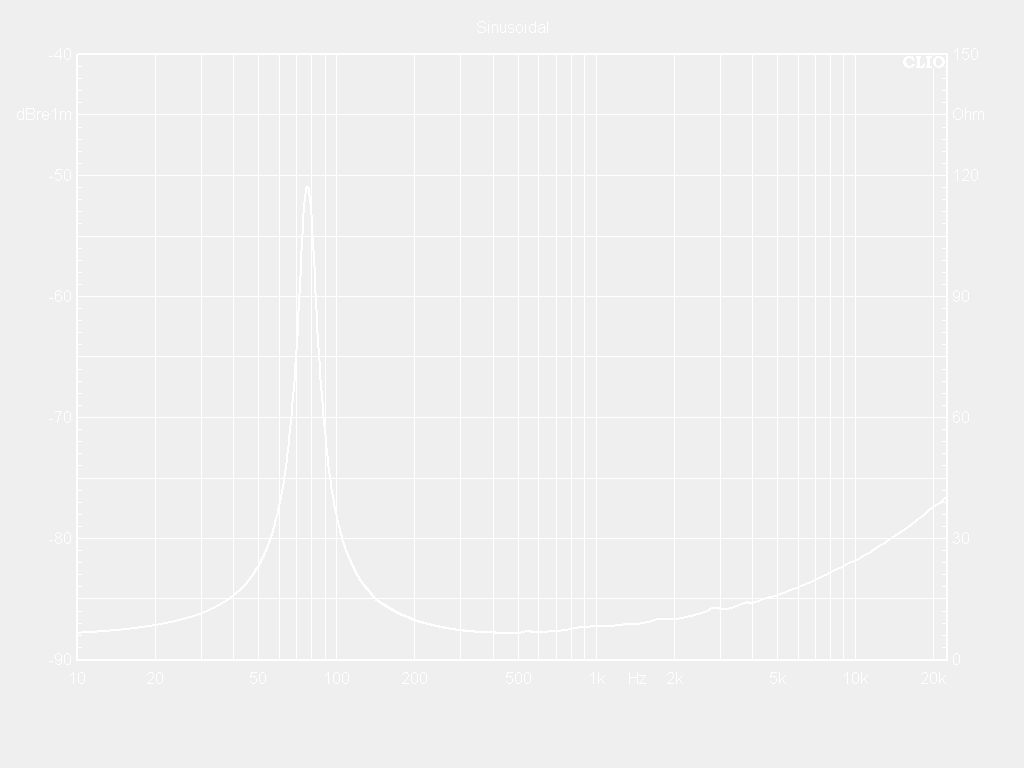

Impedance Curve
TS Parameters5
| Model Number | 08W50-8NXH |
| Fs | 77Hz |
| Re | 5.3Ω |
| Le | 0.31mH |
| Mms | 23g |
| Mmd | 21g |
| Cms | 0.18mm/N |
| BL | 14.4Tm |
| Qms | 6.1 |
| Qes | 0.29 |
| Qts | 0.27 |
| Vas | 12L |
| Ref. Efficiency | 1.8% |
| Sd | 214cm2 |
| EBP | 265Hz |
Mechanical Drawing
Additional information
| Series | NX SERIES |
|---|---|
| Diameter | 8in |
| Nominal Impedance | 8Ω |
| Continuous Power Handling | 250W |
| Voice Coil Diameter | 50.6mm |
| Maximum Excursion | 6.4mm |
| Magnet Material | Neodymium Ring |
