08W35-8TP BASS/MID RANGE DRIVER
KEY FEATURES:
- 94dB 1W/1m sensitivity
- 150W AES power handling
- 65Hz-4kHz frequency response
- 35.5mm (1.4in) copper voice coil
- Suitable for compact two way systems and multi-way systems
Description
NOTES:
1、Two hours test according to AES 2-1984 Rev. 2003. Power calculated on rated minimum impedance.
2、Maximum power is defined as 3dB greater than Nominal power.
3、Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
4、Xmax= [(winding depth – magnetic gap depth)/2] + (magnetic gap depth/3).
5、Thiele-Small parameters are measured after a preconditioning test.
6、Power test made with continuous pink noise signal within the frequency range.
General Specifications
| Part Number | 08W35-8TP |
| Nominal Diameter | 210.5mm (8in) |
| Nominal Impedance | 8Ω |
| Minimum Impedance | 6.2Ω |
| AES Power Handling1 | 150W |
| Maximum Power Handling2 | 300W |
| Sensitivity (1W/1m)3 | 94dB |
| Resonance Frequency | 65Hz |
| Frequency Range | 65Hz-4kHz |
| Voice Coil Diameter | 35.5mm |
| Winding Material | Copper |
| Former Material | Polyimide |
| Winding Depth | 10.2mm |
| Magnetic Gap Depth | 6mm |
| Xmax4 | 4.1mm |
| Flux Density | 1.3T |
| Basket Material | Pressed Steel |
| Magnet Material | Ferrite |
| Suspension Material | Fabric |
| Surround Material | W-Roll Cloth-sealed |
| Cone Material | Curvilinear Paper |
| Net Weight | 2.2kg |

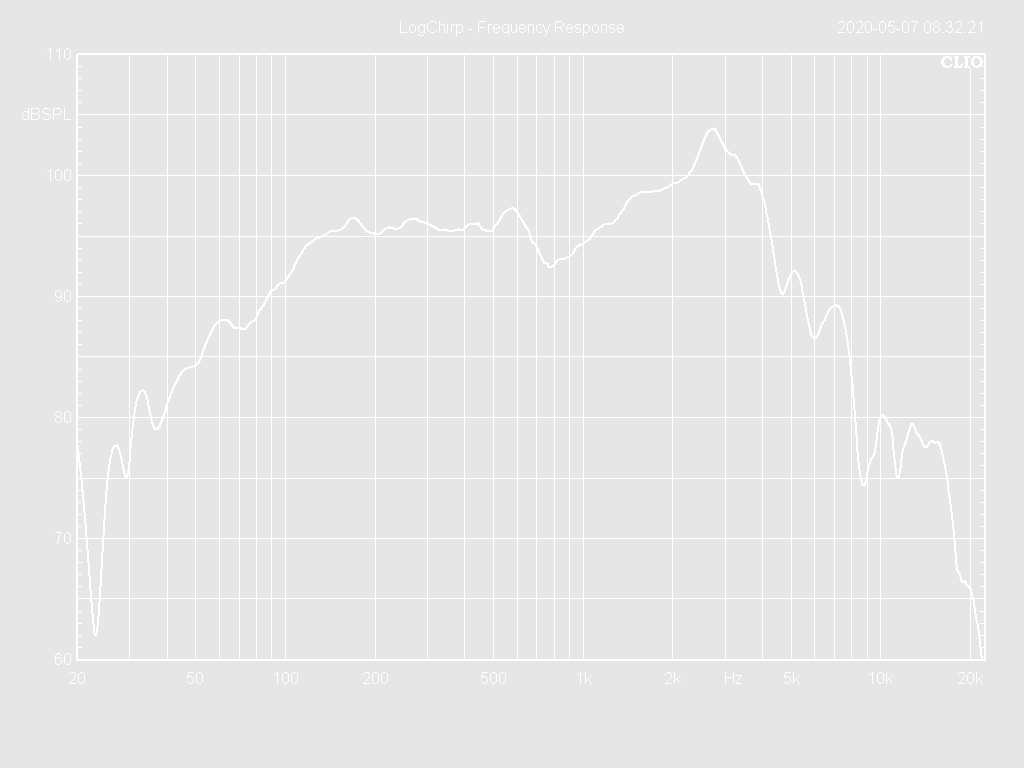

Frequency Response Curve
Impedance Curve
TS Parameters5
| Model Number | 08W35-8TP |
| Fs | 68Hz |
| Re | 5.9Ω |
| Le | 0.30mH |
| Mms | 18g |
| Mmd | 16g |
| Cms | 0.30mm/N |
| BL | 9.6Tm |
| Qms | 6.3 |
| Qes | 0.50 |
| Qts | 0.46 |
| Vas | 19L |
| Ref. Efficiency | 1.2% |
| Sd | 214cm2 |
| EBP | 136Hz |

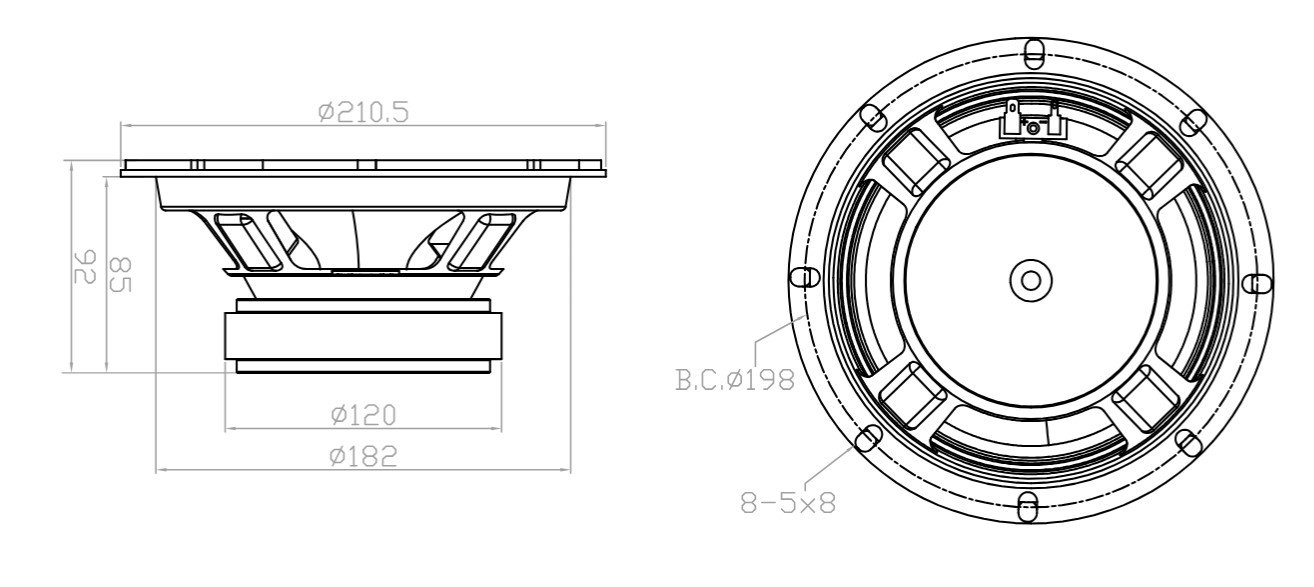

Mechanical Drawing
Additional information
| Series | TP SERIES |
|---|---|
| Diameter | 6in |
| Nominal Impedance | 8Ω |
| Continuous Power Handling | 120W |
| Voice Coil Diameter | 35.5mm |
| Maximum Excursion | 4.1mm |
| Magnet Material | Ferrite |
