Description
NOTES:
1、Two hours test according to AES 2-1984 Rev. 2003. Power calculated on rated minimum impedance.
2、Maximum power is defined as 3dB greater than Nominal power.
3、Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
4、Xmax= [(winding depth – magnetic gap depth)/2] + (magnetic gap depth/3).
5、Thiele-Small parameters are measured after a preconditioning test.
6、Power test made with continuous pink noise signal within the frequency range.

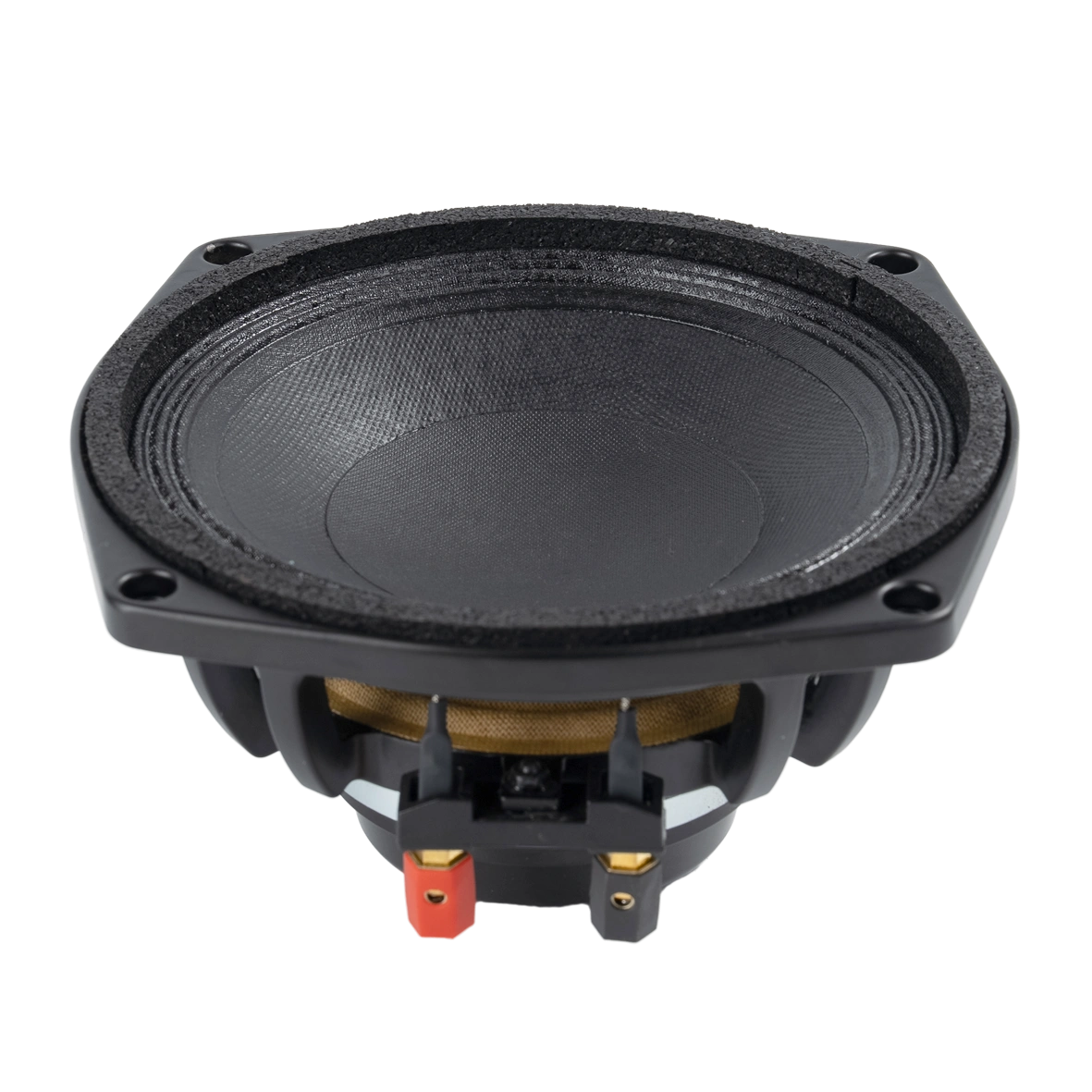

General Specifications
| Part Number | 06W44-8NX |
| Nominal Diameter | 162mm (6in) |
| Nominal Impedance | 8Ω |
| Minimum Impedance | 5.5Ω |
| AES Power Handling1 | 200W |
| Maximum Power Handling2 | 400W |
| Sensitivity (1W/1m)3 | 96dB |
| Resonance Frequency | 90Hz |
| Frequency Range | 90Hz-4.5kHz |
| Voice Coil Diameter | 44.2mm |
| Winding Material | Copper Clad Aluminum |
| Former Material | Glass Fiber |
| Winding Depth | 10mm |
| Magnetic Gap Depth | 6mm |
| Xmax4 | 4.0mm |
| Flux Density | 1.5T |
| Basket Material | Cast Aluminum |
| Magnet Material | Neodymium Ring |
| Suspension Material | Fabric |
| Surround Material | W-Roll Cloth-sealed |
| Cone Material | Curvilinear Paper |
| Net Weight | 1.3kg |

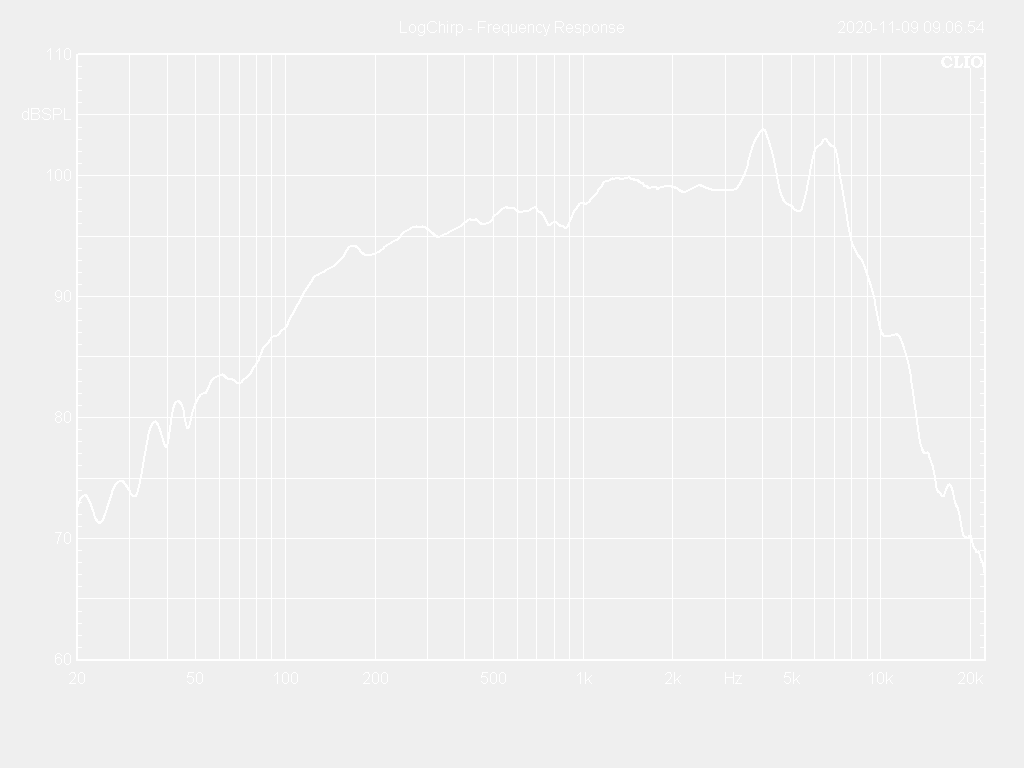

Frequency Response Curve
Impedance Curve
TS Parameters5
| Model Number | 06W38-8NX |
| Fs | 155Hz |
| Re | 6.4Ω |
| Le | 0.23mH |
| Mms | 10.5g |
| Mmd | 9.6g |
| Cms | 0.10mm/N |
| BL | 10Tm |
| Qms | 7.4 |
| Qes | 0.64 |
| Qts | 0.59 |
| Vas | 2.4L |
| Ref. Efficiency | 1.4% |
| Sd | 133cm2 |
| EBP | 242Hz |
Mechanical Drawing

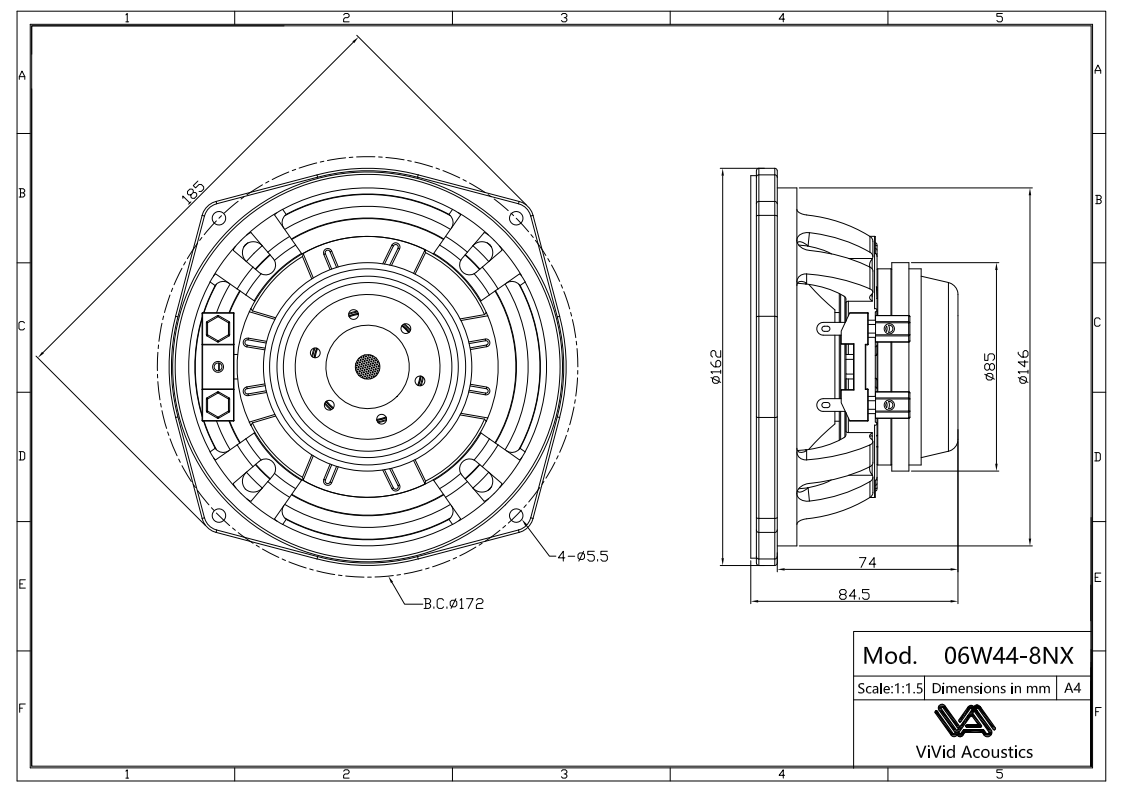

Additional information
| Series | NX SERIES |
|---|---|
| Diameter | 6in |
| Nominal Impedance | 8Ω |
| Continuous Power Handling | 200W |
| Voice Coil Diameter | 44.2mm |
| Maximum Excursion | 4.0mm |
| Magnet Material | Neodymium Ring |
