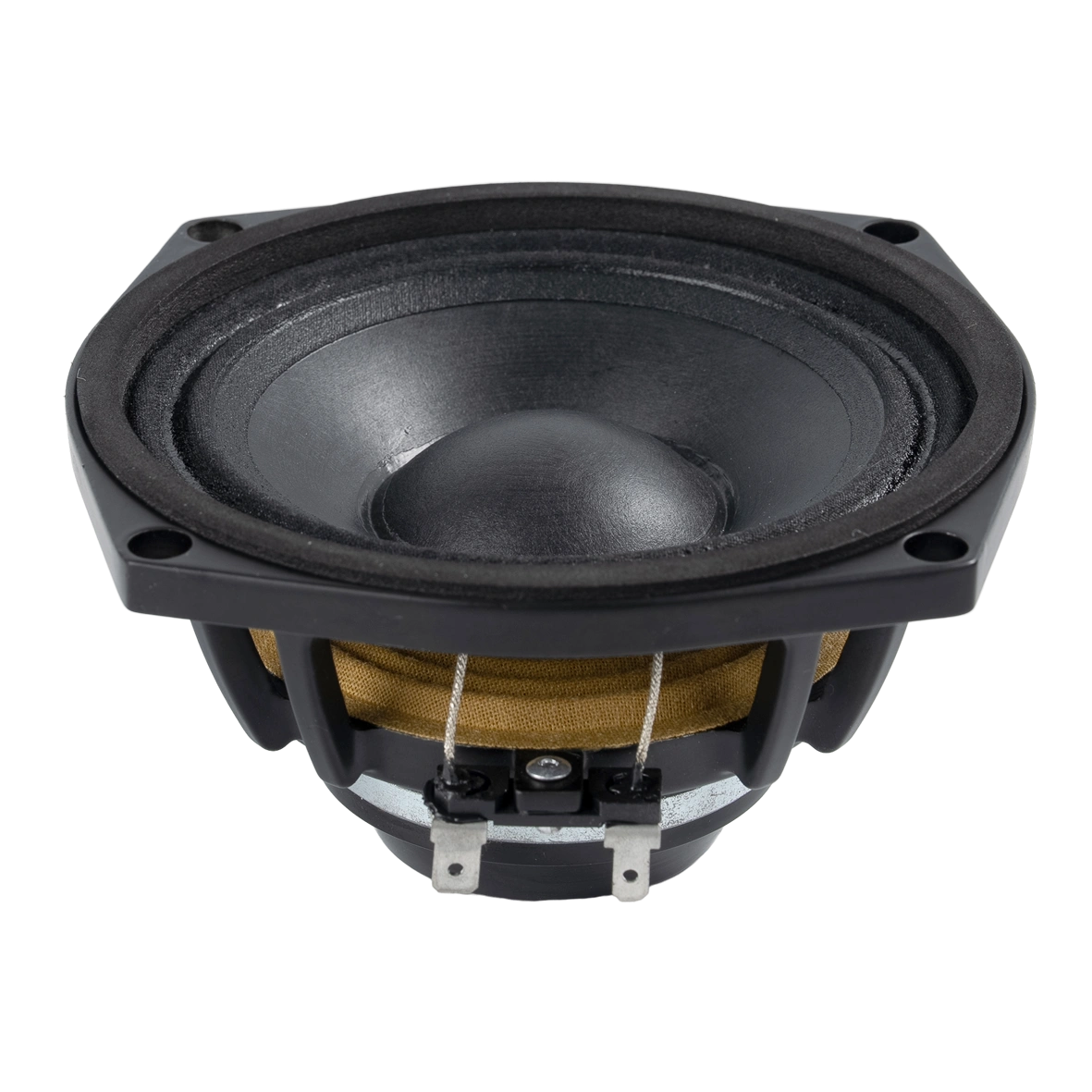

05W35-8NX BASS/MID RANGE DRIVER
KEY FEATURES:
- 94dB 1W/1m sensitivity
- 80W AES power handling
- 120Hz-10kHz frequency response
- 35.5mm (1.4in) copper clad aluminum voice coil
- Lightweight neodymium ring motor system
- Heavy-duty cast aluminum chassis for increased rigidity
- Suitable for line arrays and multi-way systems
Description
NOTES:
1、Two hours test according to AES 2-1984 Rev. 2003. Power calculated on rated minimum impedance.
2、Maximum power is defined as 3dB greater than Nominal power.
3、Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
4、Xmax= [(winding depth – magnetic gap depth)/2] + (magnetic gap depth/3).
5、Thiele-Small parameters are measured after a preconditioning test.
6、Power test made with continuous pink noise signal within the frequency range.
General Specifications
| Part Number | 05W35-8NX |
| Nominal Diameter | 135mm (5in) |
| Nominal Impedance | 8Ω |
| Minimum Impedance | 6.0Ω |
| AES Power Handling1 | 80W |
| Maximum Power Handling2 | 160W |
| Sensitivity (1W/1m)3 | 94dB |
| Resonance Frequency | 120Hz |
| Frequency Range | 120Hz-10kHz |
| Voice Coil Diameter | 35.55mm |
| Winding Material | Copper Clad Aluminum |
| Former Material | Glass Fiber |
| Winding Depth | 10mm |
| Magnetic Gap Depth | 5mm |
| Xmax4 | 4.2mm |
| Flux Density | 1.4T |
| Basket Material | Cast Aluminum |
| Magnet Material | Neodymium Ring |
| Suspension Material | Fabric |
| Surround Material | W-Roll Cloth-sealed |
| Cone Material | Curvilinear Paper |
| Net Weight | 0.8kg |

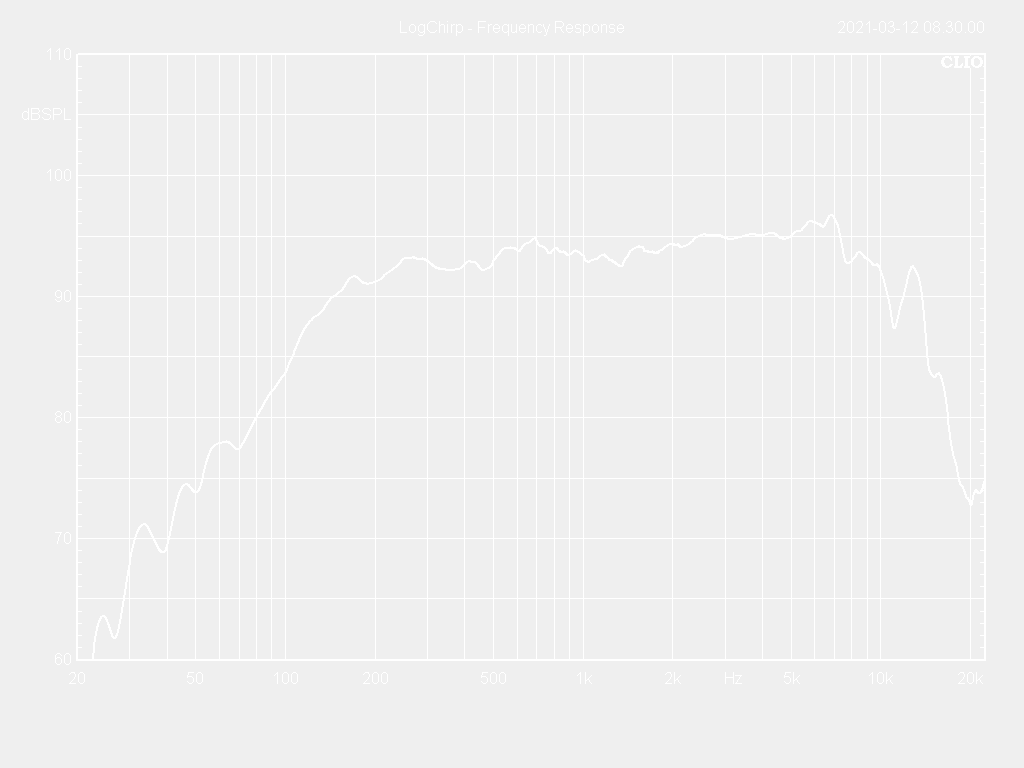

Frequency Response Curve
Impedance Curve
TS Parameters5
| Model Number | 05W35-8NX |
| Fs | 127Hz |
| Re | 5.6Ω |
| Le | 0.21mH |
| Mms | 8.7g |
| Mmd | 8.3g |
| Cms | 0.16mm/N |
| BL | 9.5Tm |
| Qms | 3.4 |
| Qes | 0.47 |
| Qts | 0.41 |
| Vas | 1.7L |
| Ref. Efficiency | 0.7% |
| Sd | 86.6cm2 |
| EBP | 270Hz |

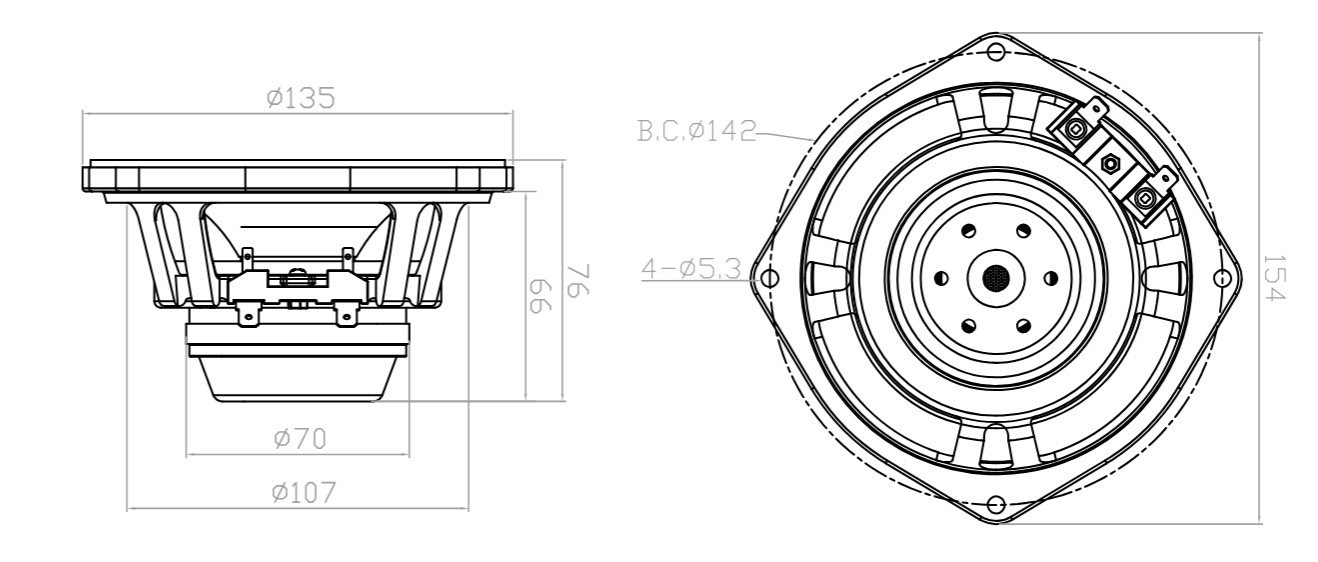

Mechanical Drawing
Additional information
| Series | NX SERIES |
|---|---|
| Diameter | 5in |
| Nominal Impedance | 8Ω |
| Continuous Power Handling | 80W |
| Voice Coil Diameter | 35.5mm |
| Maximum Excursion | 4.2mm |
| Magnet Material | Neodymium Ring |
