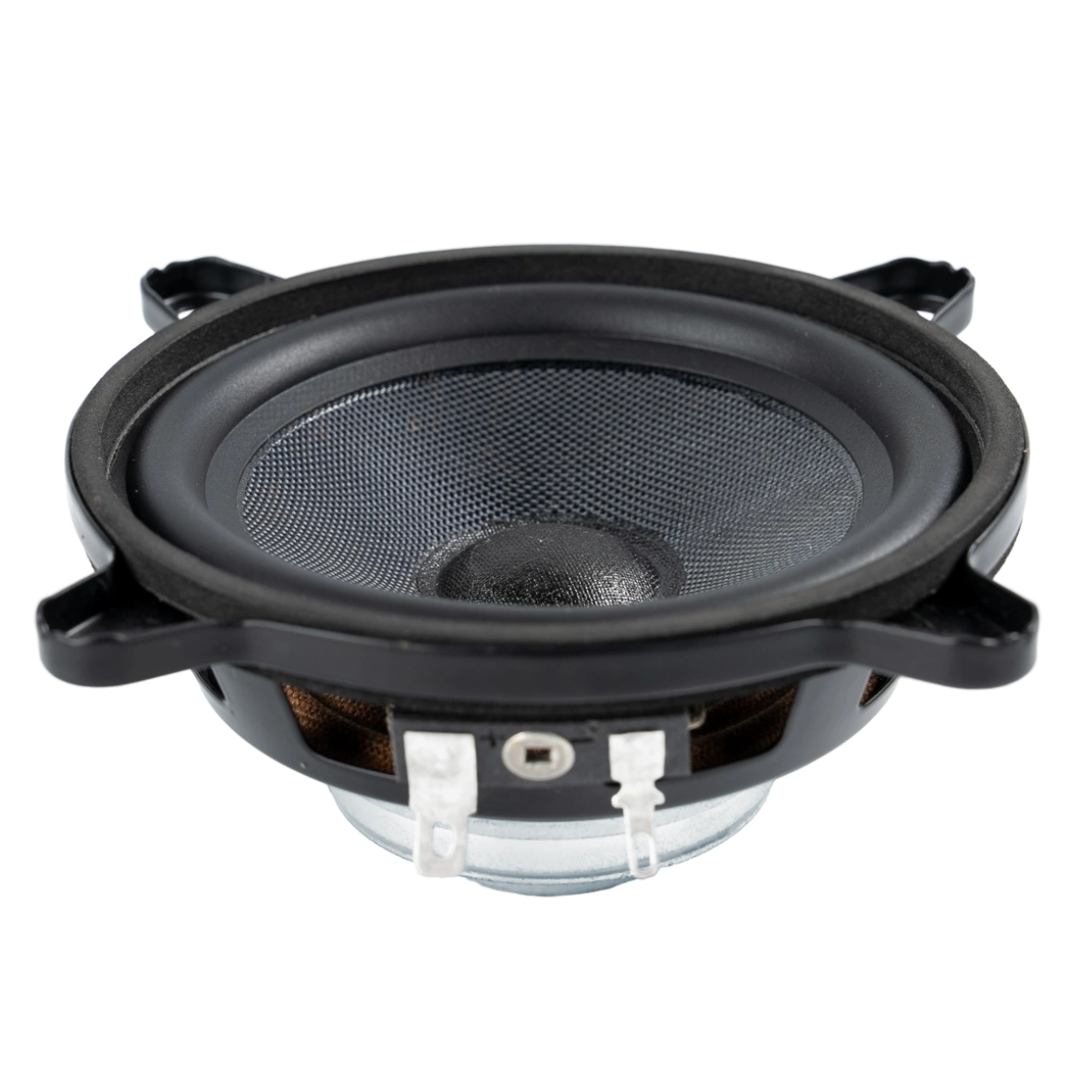

04W19-8CN BASS/MID RANGE DRIVER
KEY FEATURES:
- 91dB 1W/1m sensitivity
- 30W AES power handling
- 90Hz-20kHz frequency response
- 19.45mm (0.75in) aluminum voice coil
- Black glass fiber cone material
- Neodymium ring magnetic structure
- Suitable for sound column systems and multi-way systems
Description
NOTES:
1、Two hours test according to AES 2-1984 Rev. 2003. Power calculated on rated minimum impedance.
2、Maximum power is defined as 3dB greater than Nominal power.
3、Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
4、Xmax= [(winding depth – magnetic gap depth)/2] + (magnetic gap depth/3).
5、Thiele-Small parameters are measured after a preconditioning test.
6、Power test made with continuous pink noise signal within the frequency range.
General Specifications
| Part Number | 04W19-8CN |
| Nominal Diameter | 100.5mm (4in) |
| Nominal Impedance | 8Ω |
| Minimum Impedance | 7.2Ω |
| AES Power Handling1 | 30W |
| Maximum Power Handling2 | 60W |
| Sensitivity (1W/1m)3 | 91dB |
| Resonance Frequency | 90Hz |
| Frequency Range | 90Hz-20kHz |
| Voice Coil Diameter | 19.45mm |
| Winding Material | Aluminum |
| Former Material | Polyimide |
| Winding Depth | 6.2mm |
| Magnetic Gap Depth | 4mm |
| Xmax4 | 2.4mm |
| Flux Density | 1.4T |
| Basket Material | Pressed Steel |
| Magnet Material | Neodymium Ring |
| Suspension Material | Fabric |
| Surround Material | Half-Roll Rubber |
| Cone Material | Curvilinear Black Glass Fiber |
| Net Weight | 0.28kg |

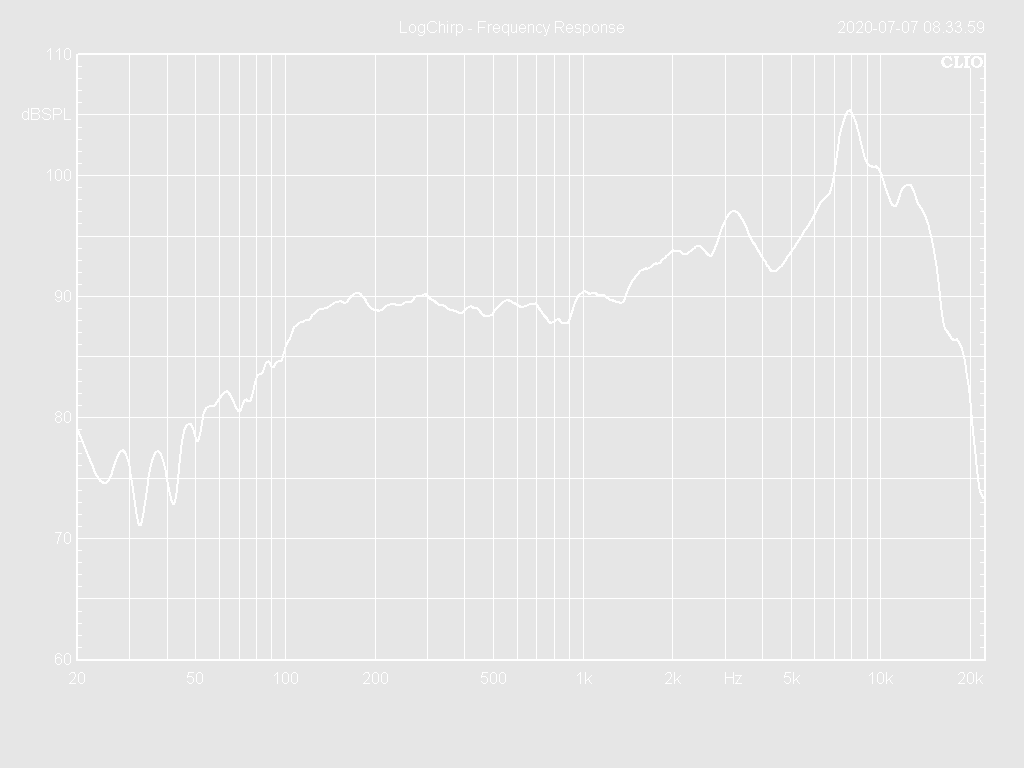

Frequency Response Curve

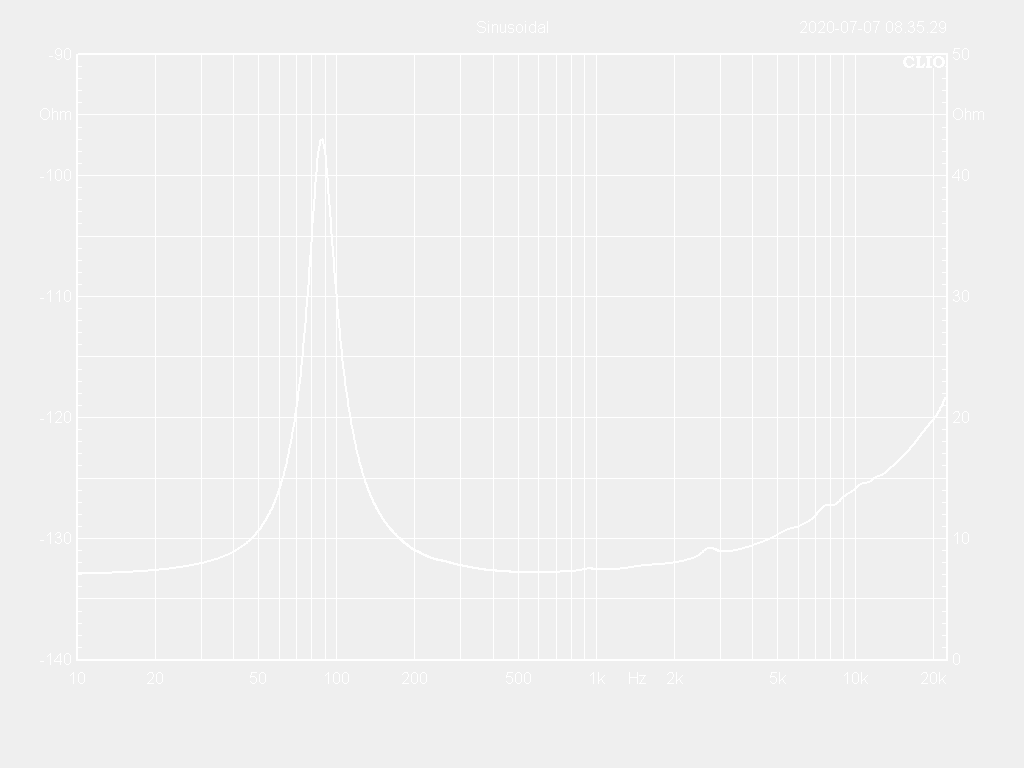

Impedance Curve
TS Parameters5
| Model Number | 04W19-8CN |
| Fs | 88Hz |
| Re | 7.0Ω |
| Le | 0.14mH |
| Mms | 3.8g |
| Mmd | 3.6g |
| Cms | 0.85mm/N |
| BL | 4.4Tm |
| Qms | 4.1 |
| Qes | 0.76 |
| Qts | 0.64 |
| Vas | 3.2L |
| Ref. Efficiency | 0.28% |
| Sd | 51.9cm2 |
| EBP | 116Hz |

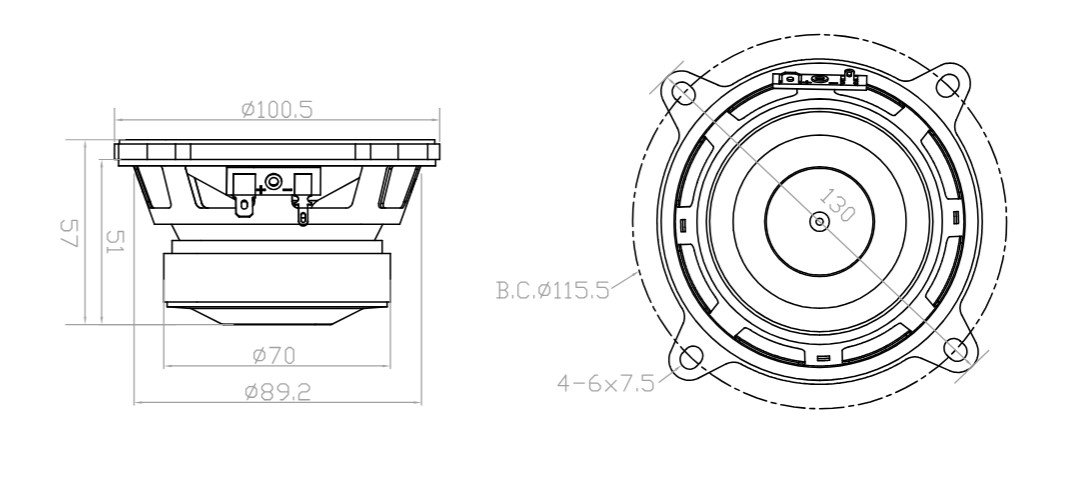

Mechanical Drawing
Additional information
| Series | C SERIES |
|---|---|
| Diameter | 4in |
| Nominal Impedance | 8Ω |
| Continuous Power Handling | 30W |
| Voice Coil Diameter | 19.45mm |
| Maximum Excursion | 2.4mm |
| Magnet Material | Neodymium Ring |
