03W19-8CN BASS/MID RANGE DRIVER
KEY FEATURES:
- 90dB 1W/1m sensitivity
- 25W AES power handling
- 110Hz-20kHz frequency response
- 19.45mm (0.75in) aluminum voice coil
- Neodymium ring magnetic structure
- Suitable for sound column systems and multi-way systems
Description
NOTES:
1、Two hours test according to AES 2-1984 Rev. 2003. Power calculated on rated minimum impedance.
2、Maximum power is defined as 3dB greater than Nominal power.
3、Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
4、Xmax= [(winding depth – magnetic gap depth)/2] + (magnetic gap depth/3).
5、Thiele-Small parameters are measured after a preconditioning test.
6、Power test made with continuous pink noise signal within the frequency range.
General Specifications
| Part Number | 03W19-8CN |
| Nominal Diameter | 81mm (3in) |
| Nominal Impedance | 8Ω |
| Minimum Impedance | 7.1Ω |
| AES Power Handling1 | 25W |
| Maximum Power Handling2 | 50W |
| Sensitivity (1W/1m)3 | 90dB |
| Resonance Frequency | 110Hz |
| Frequency Range | 110Hz-20kHz |
| Voice Coil Diameter | 19.45mm |
| Winding Material | Aluminum |
| Former Material | Polyimide |
| Winding Depth | 5mm |
| Magnetic Gap Depth | 4mm |
| Xmax4 | 1.8mm |
| Flux Density | 1.4T |
| Basket Material | Pressed Steel |
| Magnet Material | Neodymium Ring |
| Suspension Material | Fabric |
| Surround Material | Half-Roll Rubber |
| Cone Material | Curvilinear Paper |
| Net Weight | 0.25kg |

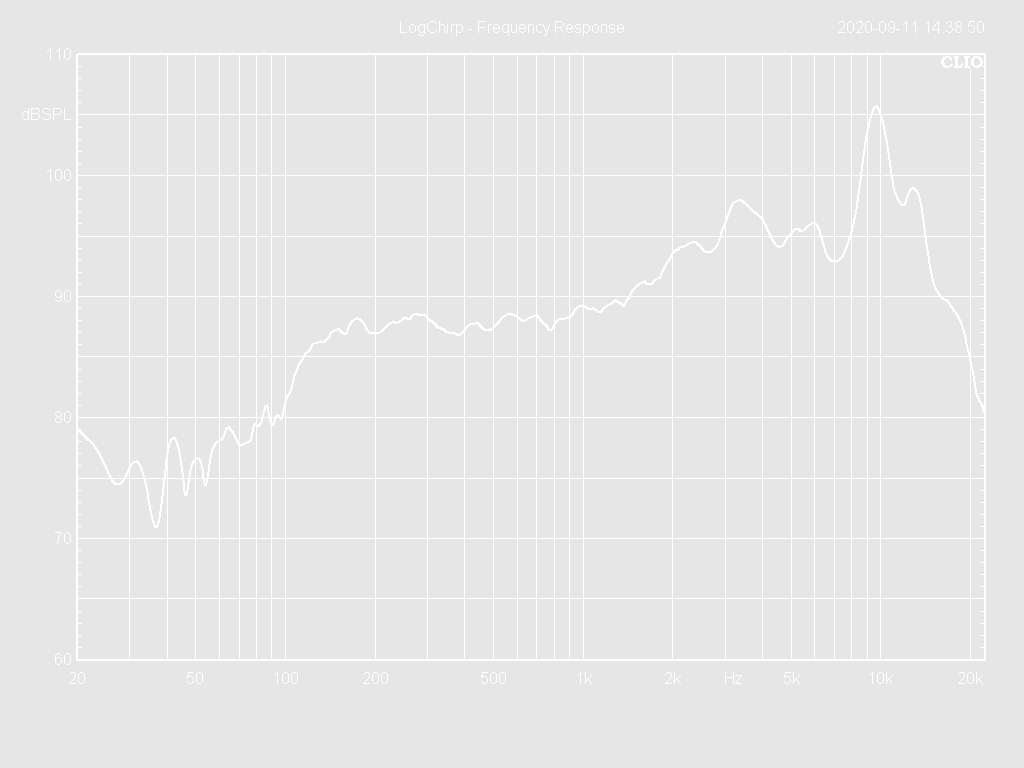

Frequency Response Curve
Impedance Curve
TS Parameters5
| Model Number | 03W19-8CN |
| Fs | 110Hz |
| Re | 6.5Ω |
| Le | 0.12mH |
| Mms | 2.7g |
| Mmd | 2.6g |
| Cms | 0.76mm/N |
| BL | 4.5Tm |
| Qms | 4.7 |
| Qes | 0.62 |
| Qts | 0.55 |
| Vas | 1.2L |
| Ref. Efficiency | 0.24% |
| Sd | 33cm2 |
| EBP | 177Hz |
Mechanical Drawing
Additional information
| Series | C SERIES |
|---|---|
| Diameter | 3in |
| Nominal Impedance | 8Ω |
| Continuous Power Handling | 25W |
| Voice Coil Diameter | 19.45mm |
| Maximum Excursion | 1.8mm |
| Magnet Material | Neodymium Ring |
